Industrial Juice Extractor: A Highly Efficient Solution for Commercial Fruit and Vegetable Juicing

In the rapidly evolving landscape of commercial food production, maintaining high standards of product quality, maximizing efficiency, and ensuring reliable operation are more critical than ever. The demand for consistent juice quality, high juice yield, and streamlined processing has driven manufacturers to seek advanced equipment that can meet these rigorous requirements. VERFOODSOLUTIONS’ industrial juice extractors are specifically engineered to address these needs, integrating cutting-edge crushing and screw pressing technologies to transform a wide variety of fruits and vegetables into nutrient-rich, fresh juice. These machines are designed not only to deliver superior juice quality but also to minimize raw material waste, reduce operational downtime, and enhance overall productivity. Whether you operate a small, boutique juice brand or manage large-scale industrial food manufacturing facilities, our Industrial Juice Extractor offers scalable performance, exceptional flexibility, and dependable operation to support your production goals.

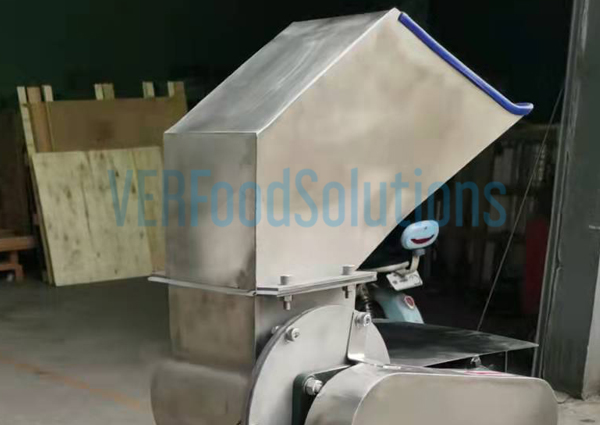

1. Feed Inlet

The feeding process is a crucial step in juice extraction, directly impacting throughput and operational smoothness. Our industrial juice extractor features a thoughtfully designed trapezoidal open feed inlet, which significantly improves feeding efficiency. The wide, open design allows operators to load larger quantities of raw materials at once, reducing the frequency of feeding interruptions and speeding up the entire process. The trapezoidal shape facilitates easier pouring and handling of fruits and vegetables, whether they are whole or cut into smaller pieces. This design minimizes material spillage and ensures a steady flow of raw materials into the machine, thereby enhancing overall production efficiency and reducing labor costs.

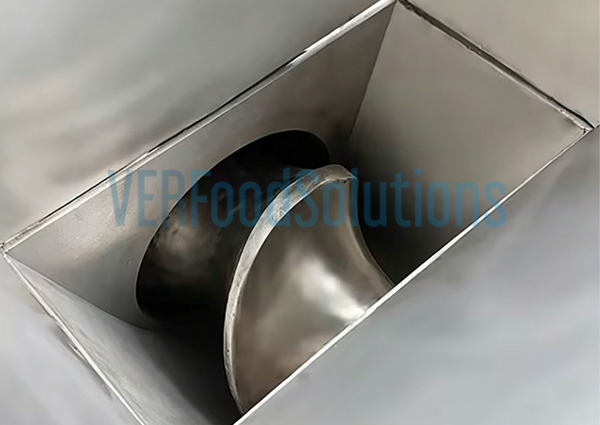

2. Spiral Pressing Rod

At the heart of the juice extraction process lies the spiral pressing mechanism. Our industrial juice extractor is equipped with a built-in, thickened stainless steel auger—also known as a spiral pressing rod—that is prominently visible at the feed inlet. Crafted from high-quality stainless steel, the auger ensures long-lasting durability and resistance to corrosion, even in demanding industrial environments. Its robust construction guarantees stable and reliable operation over extended periods, reducing the need for frequent maintenance.

The auger’s high conveying capacity allows for fast, clog-free feeding of raw materials, whether they are large fruits, fibrous vegetables, or small particles. Its design facilitates smooth transport of materials from the feed inlet through the crushing and pressing zones, ensuring minimal downtime and efficient juice extraction. The powerful conveying ability also means that operators can load larger quantities at once, further speeding up the production cycle.

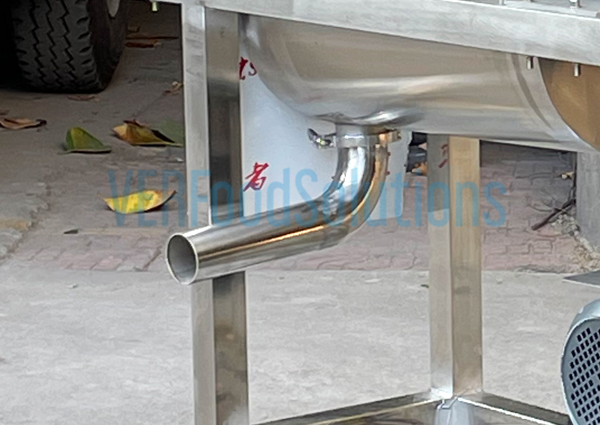

3. Juice Pipeline

The juice pipeline is an essential component in delivering the extracted juice from the machine to the collection or further processing stages. Our industrial juice extractor features a long, carefully designed juice pipeline extending from the bottom to the side of the machine. This configuration allows for unobstructed, efficient juice flow, minimizing pressure drops and ensuring continuous, smooth discharge.

The pipeline can be configured to directly output fresh juice into containers, tanks, or storage systems. Alternatively, it can be connected to hoses or piping networks to transport juice to other areas of the facility, such as pasteurization units or bottling lines. The thoughtful placement and length of the pipeline facilitate flexible installation options, making it suitable for diverse production layouts and scale sizes.

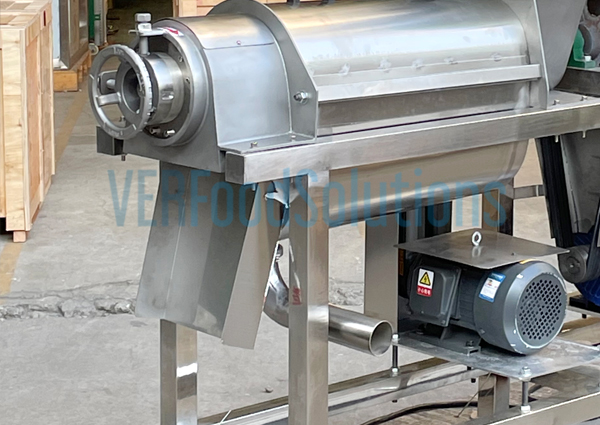

4. Residue Outlet

Effective separation of juice and residual waste is critical for product purity, hygiene, and operational cleanliness. Our industrial juice extractor features a residue outlet positioned strategically at the output end of the machine. The outlet is designed to be spatially separated fro the juice pipeline, preventing mixing or contamination during discharge.

Underneath the residue outlet, a tilted slide directs the waste into a collection tray or residue bin. This tilt ensures that waste, such as pulp, fiber, or peel residues, falls cleanly and efficiently into the tray, preventing any residue carryover into the juice output. Such a design not only maintains high juice purity standards but also simplifies waste management, reduces cleaning time, and keeps the working environment hygienic and safe.

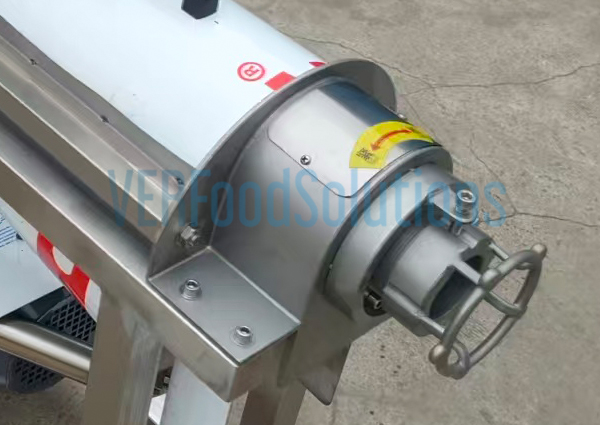

5. Adjustment of Residue Discharge Gap

Adjusting the juice yield based on raw material quality and desired product specifications is crucial for optimizing production. Industrial juice extractors are equipped with a user-friendly fine-tuning device at the residue outlet for precise juice yield control. A rotating handle, combined with a nut mechanism, allows operators to precisely adjust the outlet gap.

A screw on the handle acts as a lock – tightening or loosening this screw adjusts the handle’s rotation angle, thus regulating the residue outlet gap. Turning the handle counter-clockwise narrows the gap, resulting in slower residue discharge and allowing for greater residue extraction, thus increasing the juice yield. Conversely, turning the handle clockwise widens the gap, allowing for easier residue discharge, which also reduces the juice yield. This manual adjustment method enables operators to control the juicing process in real-time, optimizing the juice yield based on specific raw materials and production goals, thereby maximizing efficiency and profitability.

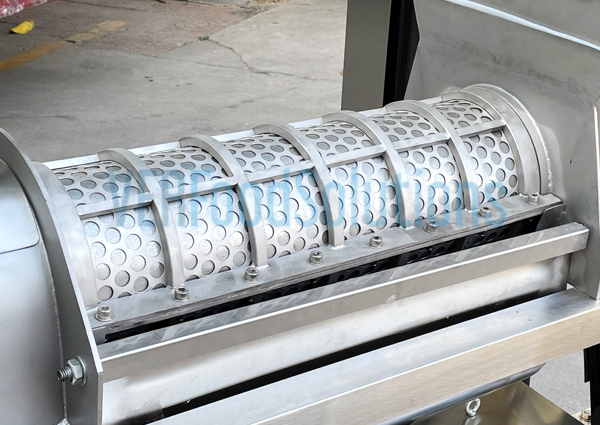

6. Rotary Drum Screen

The industrial juice extractor with the drum screen, after raw materials pass through the feed, they enter the rotary drum screen, which plays a pivotal role in separating juice from residual pulp and fiber. The drum features precise 0.6mm filter holes, designed to retain larger particles while allowing juice to pass through smoothly. The wing-shaped screw auger embedded within the drum facilitates continuous movement of the material through the filtering zone.

The innovative wing design simplifies disassembly and cleaning, making routine maintenance quick and straightforward. Easy access to the drum’s interior ensures that operators can perform thorough cleaning, preventing buildup of residues that could compromise hygiene or machine performance. The rotary drum screen’s high efficiency and ease of maintenance contribute significantly to sustained operational stability and product quality.

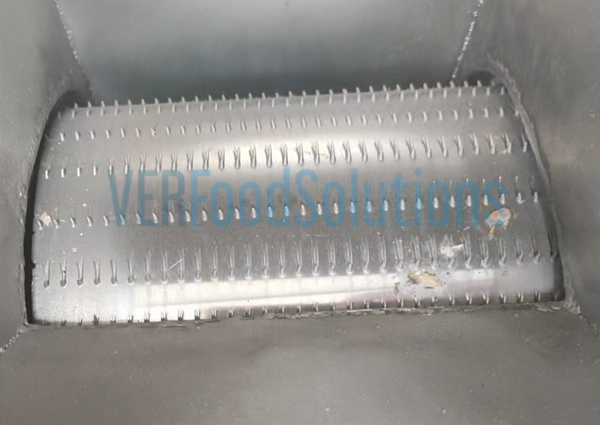

7. Customized Spiked Pressing Rod

Many fruits and vegetables, such as ginger, water chestnuts, sugarcane, and other fibrous produce, pose particular challenges to conventional juicing equipment. These products require additional processing to break down tough fibers and maximize juice extraction. To address this, we customized spiked roller on industrial juice extractor, designed specifically for fibrous material processing.

The spiked roller pre-crushes and shreds fibrous produce before they enter the main juicing chamber. The spikes exert strong pressure to crush fibers, reducing their toughness and allowing for more complete extraction within the drum. This pre-pressing step effectively increases juice yield, minimizes fiber residue inside the machine, and prevents clogging or jamming. The result is a cleaner, more efficient operation that can handle a wider variety of raw materials, expanding your product range and improving overall yield.

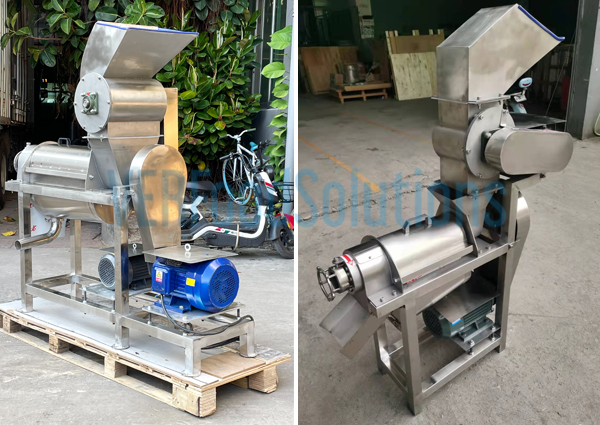

8. Stainless Steel Construction

The entire industrial juice extractor is constructed from high-grade stainless steel, ensuring durability, longevity, and hygienic operation. Stainless steel is inherently rust-proof and corrosion-resistant, making it ideal for food processing environments where sanitation is paramount. Its resistance to deformation and easy-clean properties simplify daily maintenance, sanitation, and sterilization procedures.

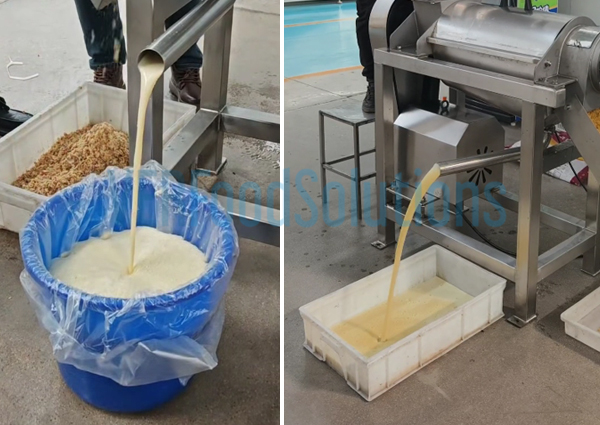

9. Test Before Delivery

Each industrial juice extractor undergoes comprehensive simulated testing to ensure dependable operation and stable performance. After passing rigorous performance checks, the machine is disassembled, thoroughly cleaned, and inspected to eliminate any residues or debris. An official inspection report is issued for each unit, confirming it meets our strict quality standards. Only then is the equipment packaged and shipped. Customers receiving the machine can begin production immediately without any additional adjustments, ensuring quick setup, minimal downtime, and reliable, high-quality operation from the start.

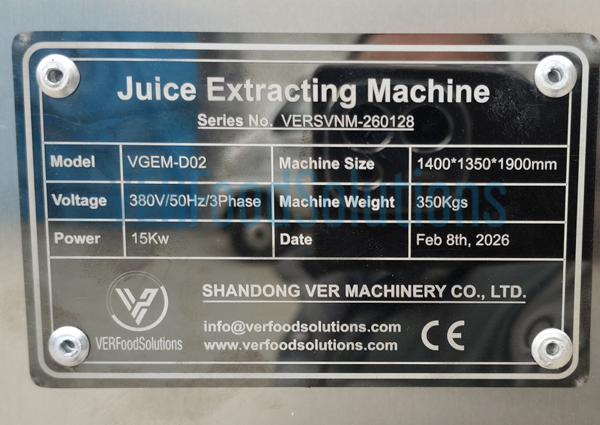

10. CE Certification

The industrial juice extractor has successfully passed the authoritative CE safety certification, and all production standards comply with internationally recognized manufacturing specifications. The equipment is solidly constructed, and its safety performance and production hygiene conditions have undergone rigorous testing and meet the standards for use in various food processing plants around the world.

At VERFOODSOLUTIONS, our goal is to provide not only advanced and efficient juicing solutions but also peace of mind through rigorous quality control and dependable performance. Our industrial juice extractors are crafted to meet the highest standards of hygiene, durability, and operational stability, ensuring they reliably support your production needs over the long term. With cutting-edge technology, flexible design options, and comprehensive testing, you can trust that your investment will deliver optimal juice quality, maximum yield, and seamless efficiency—empowering your business to thrive in a competitive marketplace. If you operate in the agricultural industry or produce fruits and vegetables, please contact us for a quote.
