Name: Linear Vibrating Sifter Machine
Brand: VER Food Solutions
Rating: 5 (2 reviews)

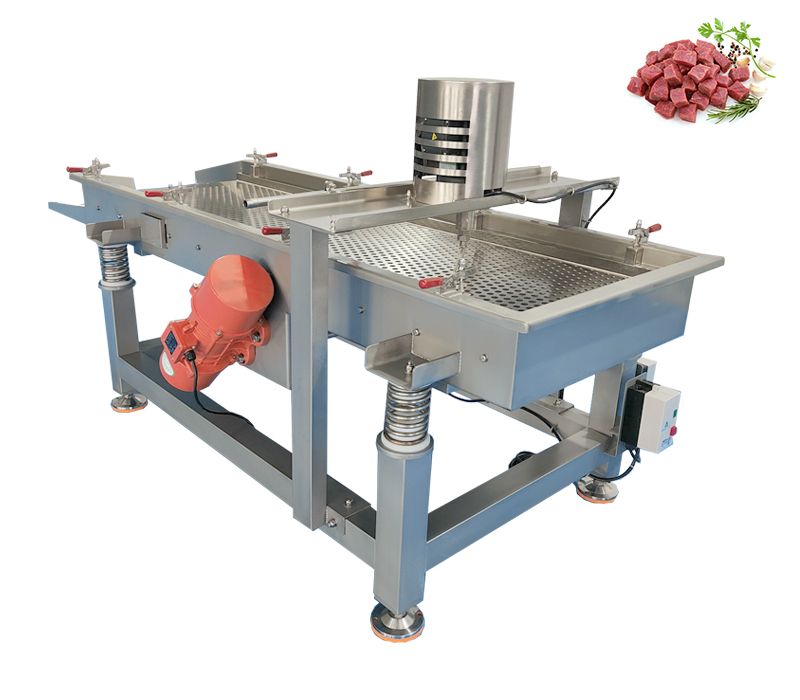

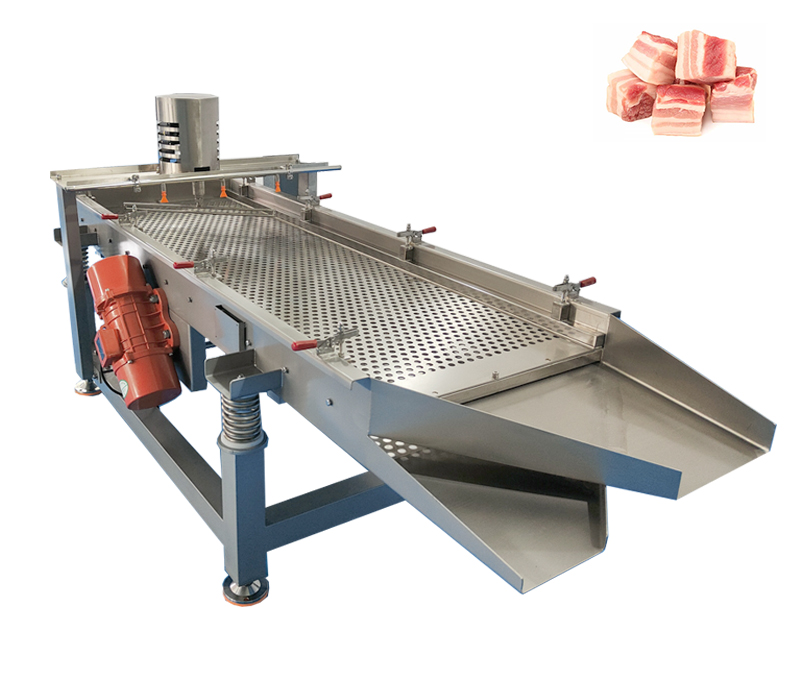

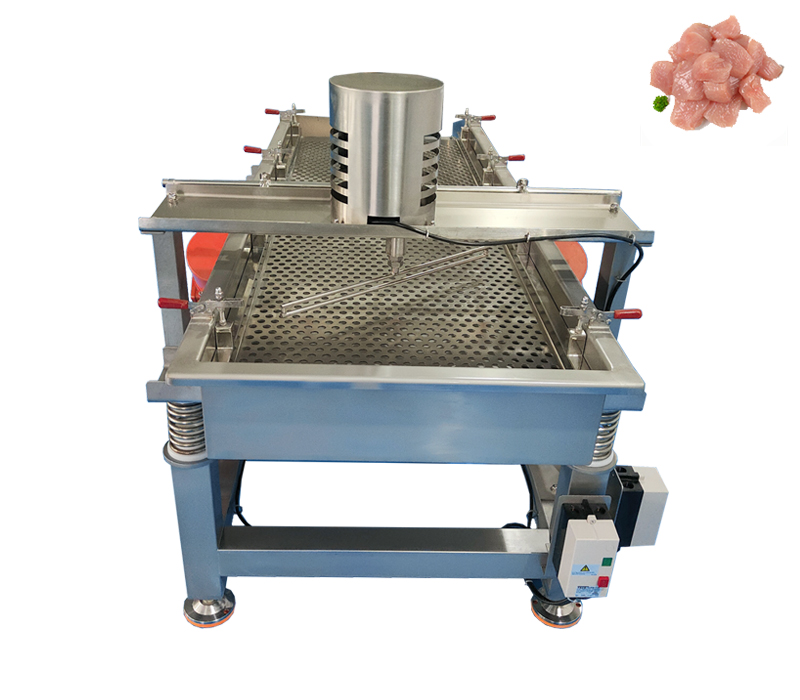

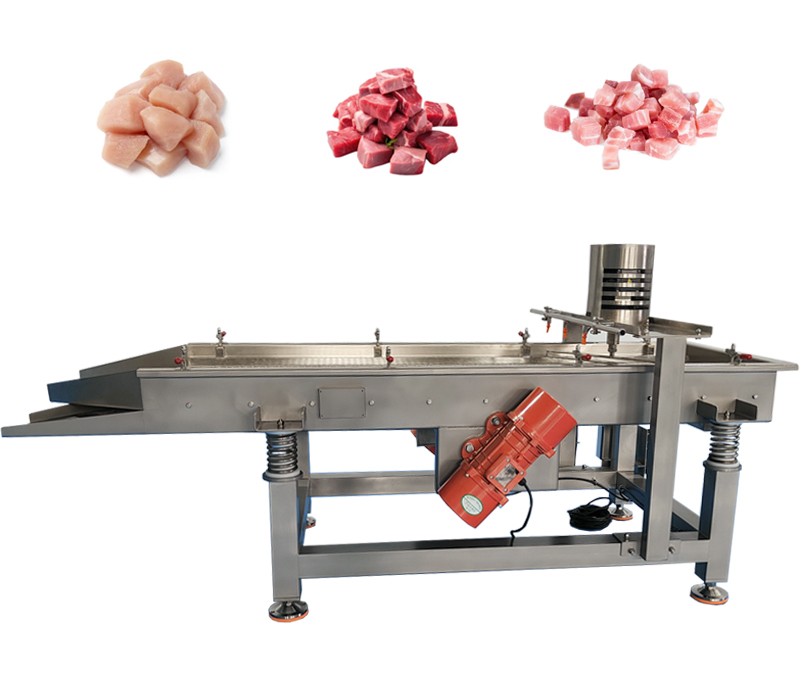

Linear Vibrating Sifter Machine

September 7, 2026Admin

Main Benefits

High-precision screening ensures superior product quality.
Minimizes manual sorting and cuts labor expenses.
Boosts screening efficiency and increases production output.
Entire machine is made of SUS304 stainless steel.
Automatic unloading and continuous operation are possible.
Equipped with replaceable vibrating screen mesh.
Mesh size can be customized per product needs

Category: Conveyor

Contact Our Specialists

Overview

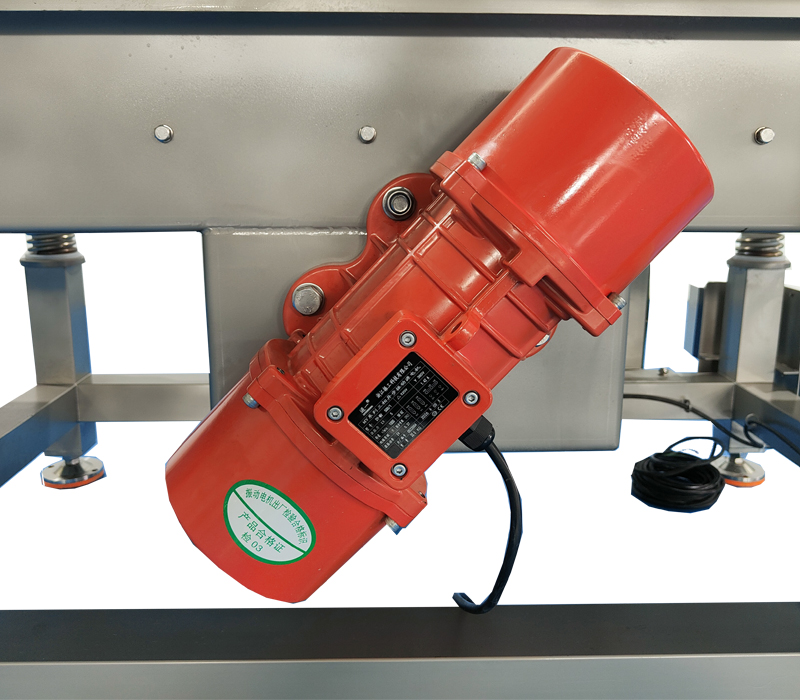

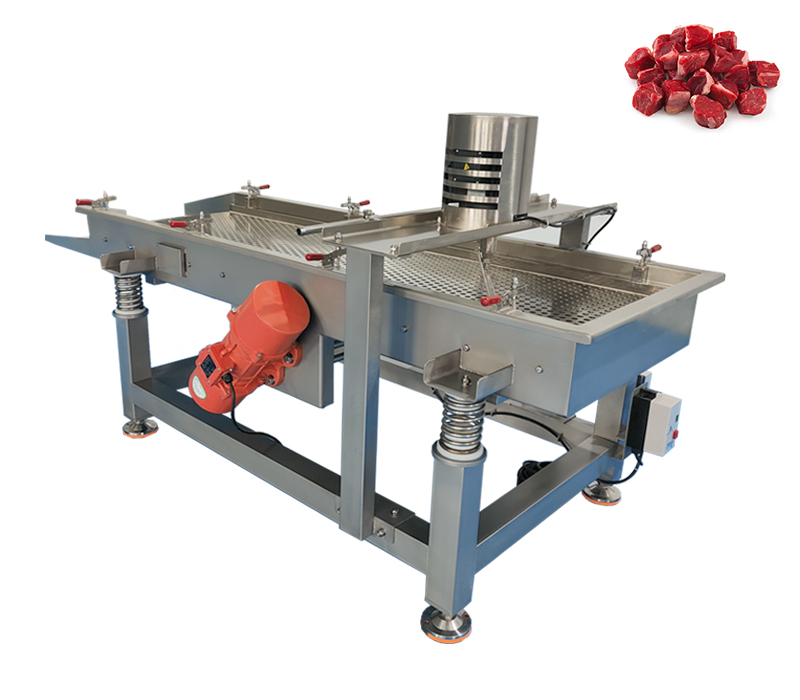

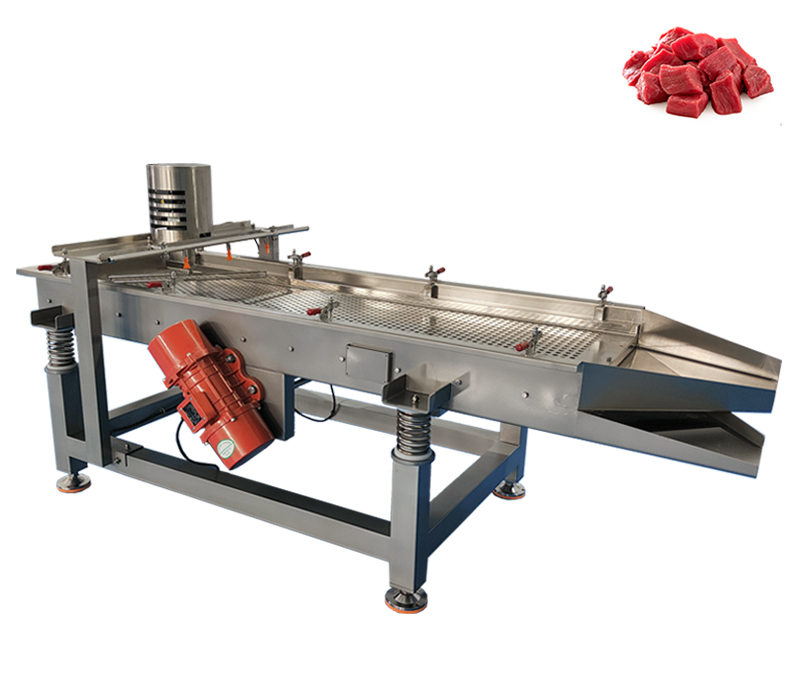

VERFOODSOLUTIONS Linear vibrating sifter machine is driven by a vibrating motor, which imparts a throwing motion to the material while propelling it forward in a straight line along the screen surface. Material is fed uniformly through the inlet, and after passing across the screen, it is separated into two fractions—oversize and undersize—each discharged through its own outlet. The unit features low energy consumption, high throughput, a simple structure, easy maintenance, and automatic discharge, making it highly suitable for assembly line operations.

From the feed end, material spreads evenly across the screen, preventing build‑up. The machine can also perform screening, grading, and distribution functions. Under the excitation of an eccentric vibrator, material moves quickly forward, enabling rapid separation and classification. Importantly, while achieving high screening efficiency, the equipment gently conveys the material to the next processing stage, effectively minimizing damage to fragile products.

Videos

Features

Stainless steel vibrating screen for fresh meat and dry materials.
Snap-lock screen frames allow rapid aperture size changes.
Entire unit constructed from durable 304 food-grade stainless steel.
Customizable mesh openings and up to three grading layers.
Tool-free disassembly ensures fast cleaning and reliable performance.

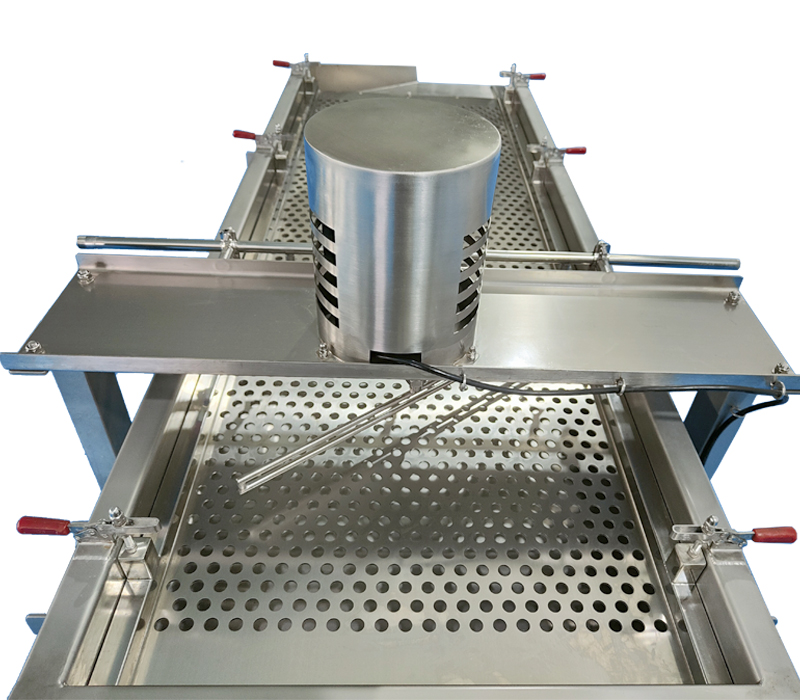

Deflector wings prevent clogging and ensure even material distribution.
Energy-saving motor provides uniform, gentle, and directional vibration.
Fully polished welds eliminate dead corners for easy sanitation.

Specifications

Input Width(mm)	620
Input Height(mm)	860±50mm
Output Height(mm)	700±50mm
Power(Kw)	0.74
Dimension(mm)	2450×1130×1140
Weight(kg)	400

FAQ

Why should I choose a linear vibrating sifter machine?

The material is evenly distributed on the linear vibrating sifter machine surface from the machine’s feed end, preventing material pushing. In addition, the machine can also be used for screening, grading, and distributing materials. It improves work efficiency, easily removes waste, and saves labor costs.

What is the applications of a linear vibrating sifter machine?

The vibrating sift machine is used for screening fresh meat and finished products. It can be used in the final stage of various meat cutting lines to remove waste and improve work efficiency. Furthermore, the machine can be used to screen beans, peanuts, and other grains. It can also be used for grading and classifying materials by particle size, removing impurities (filtering out foreign matter), and removing fragments (removing scraps and debris).

What mesh size of the vibrating screen can be customized? Can the screen mesh be replaced?

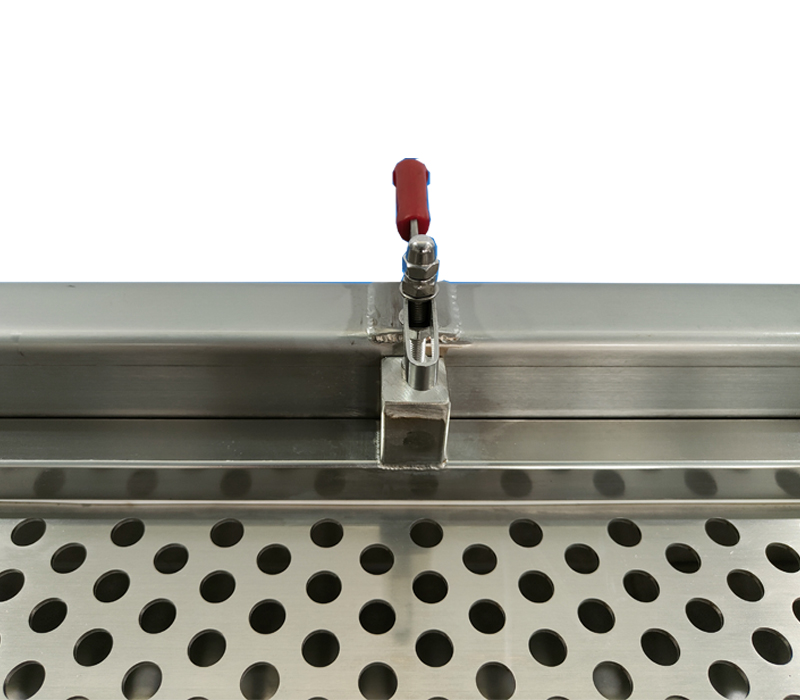

The mesh diameter of the linear vibrating sifter machine can be customized according to the size of the products to be screened. The screen mesh is replaceable. It is equipped with screen mesh fixing clips. Opening all the fixing clips allows you to remove the screen, replace it with a new screen, and then close all the fixing clips. The screen replacement is complete.

How to clean the linear vibrating sifter machine?

Disconnect the power before cleaning. Avoid spraying water directly onto electrical switches and motors. The following applies to each cleaning cycle:

a. Clean all parts of the equipment that come into direct and indirect contact with the product.

b. Rinse thoroughly after cleaning. Temperature: Optimal 50-60℃. Water quality: Drinking water.

c. If necessary, disinfect immediately after cleaning.

d. Finally, reassemble the machine in the order it was disassembled. For future using.

{Tools for cleaning: Brush, rag, cleaning fluid (acidic PH5-7, alkaline PH8-10, please refer to the cleaning fluid instructions before use)}

What is the linear vibrating sifter machine warranty?

We provide a 12-month warranty from the date of delivery for the full machine. Sufficient spare parts are also provided to cover your usage for up to 3 years. We offer new main parts as replacements during the warranty period.

What is the linear vibrating sifter machine after-sales support?

Operation Support: Detailed operation videos, including instructions on how to operate, clean, and change the forming molds, will be provided. Our after-sales service team is available 24/7 to address any questions or issues that may arise.
