Rib Cutting Machine

October 29, 2026Admin

Main Benefits

Capacity: 800–1,000 kg/h, replaces manual chopping & cuts labor cost
Automatic cutting, easy parameter setup, low operator workload
User-friendly controls, quick onboarding for new staff
Adjustable cut sizes, multi-spec production, one machine for multiple uses
Sharp wear-resistant blades for clean meat & bone cutting
Multiple power options to fit your workshop
Robust low-vibration frame, stable operation without holding
Safety design to avoid cuts and bumps
Efficient motor heat dissipation, long service life
Wide inlet & enlarged outlet, anti-jam, smooth feeding
Swivel casters for easy movement
304 stainless steel, easy to clean & sanitize

Category: Frozen Meat Cutting Machine

Contact Our Specialists

Overview

VERFOODSOLUTIONS Rib cutting machine is built with 304 food-grade stainless steel, fitted with quenched hardened SUS420 blades for clean, durable cutting. The quick-release blade assembly supports easy single-person cleaning, with an adjustable cutting gap of 0–40 mm. Featuring a 500 mm wide inlet, enlarged outlet and noise-reducing nylon gears, it prevents jamming and ensures smooth continuous feeding. It offers multiple power options and two frame heights, reaching a throughput of 800–1000 kg/h.

Equipped with swivel casters and full safety protections, rib cutting machine replaces manual chopping to cut labor workload. Low-noise and user-friendly, it requires minimal operator training. It reliably processes ribs, frozen meat and fresh bone-in meat, delivering consistent, uniform cuts. Well suited for meat plants, central kitchens, braised food workshops and large butcheries, it integrates easily into prepared-food production lines to stabilise product specs and raise overall processing efficiency.

Videos

Features

500 mm wide inlet, suitable for large ribs and frozen meat for high output
Wide stainless steel infeed table for easy material loading
0–40 mm adjustable cutting gap for diverse specs
Hardened SUS420 blades, clean meat & bone cutting without tearing
Intuitive control panel: one-touch start/stop, emergency stop & reverse
Removable knife set, easy single-person disassembly & cleaning

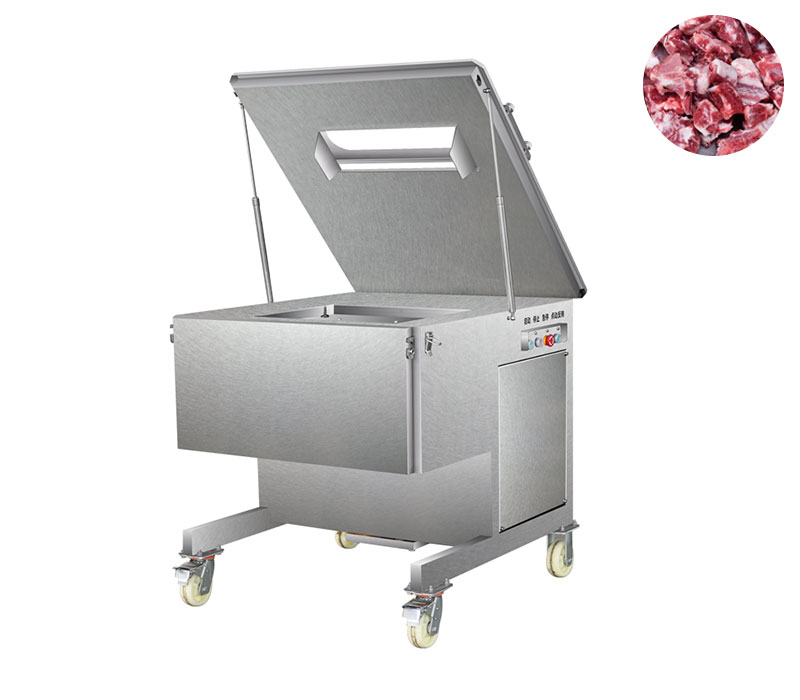

Gas-spring lid for safe, effortless operation
Enlarged discharge outlet, anti-jam for continuous production
Waterproof switches for reliable safe operation
Emergency stop button for instant protection
Double-sealed motor & gearbox, stable performance & long lifespan
Secure body latches: locked during operation, easy to open for cleaning
Heavy-duty swivel casters for smooth movement & positioning

Specifications

Model	RCM-300	RCM-400	RCM-500
Capacity(Kg/hr )	300-500	500-800	800-1000
Power(Kw)	3.0/4.0	3.0/4.0	5.5/7.5
Inlet Size (mm)	330*145	430*145	500*160
Blade Thickness (mm)	4	4	7
Blade Diameter(mm)	180	180	230
Voltage(V)	3Phase 220/380/415/440/Customized
Overall Dimension(mm)	1060840900	1060840900	116010501040
Weight(Kg)	300	350	550

FAQ

Why Should I order a rib cutting machine?

This rib cutting machine replaces labor-intensive manual bone chopping to cut workload and labor costs. Built with a 304 stainless steel body and hardened SUS420 blades, it comes with practical features including motor cooling vents, quick-detachable blade assembly, adjustable cutting gap, wide inlet & outlet, and low-noise nylon gears. Engineered for easy cleaning, smooth feeding and stable long-run operation, it handles ribs, fresh bone-in meat and frozen meat. With a capacity of 800–1,000 kg/h, it delivers consistent, even cuts for high-volume production. It is widely adopted by meat processing plants, central kitchens, prepared food facilities, distribution centers and butcher shops to standardize meat preparation and improve line efficiency.

What is the application of the rib cutting machine?

The rib cutting machine is built for batch cutting bone-in meat, mainly pork ribs, lamb ribs, beef short ribs and bone-in blocks for ready-to-cook meals. It serves slaughterhouses, meat factories, central kitchens, prepared dish manufacturers, frozen food packagers and wholesale butcher workshops. It cuts rib racks into uniform segments in one pass for barbecue, hot pot, stewing and retail packaged ribs.

What cutting sizes does this rib cutting machine offer?

The standard cutting size is 30 mm, with an adjustable range of 0–40 mm. Custom spacing is available upon request to match different products and cutting requirements.

Is the rib cutting machine easy to clean? Is the blade assembly hard to remove?

The blade assembly is quick-release for single-person disassembly, simplifying cleaning and maintenance. The smooth 304 stainless steel surface rinses easily to remove blood and grease, supporting hygienic production.

How to select the right rib cutting machine model?

We supply three rib cutting machine models: RCM-300, RCM-400 and RCM-500. Select based on your production capacity and raw materials.

RCM-300: 300–500 kg/h, ideal for butcher shops, retail outlets and small central kitchens.

RCM-400: 500–800 kg/h, suitable for medium braised food workshops and fresh food processors.

RCM-500: 800–1,000 kg/h, which is recommended for hard bones and large output.

Designed for food factories and meat packing plants for continuous high-volume processing of large bone-in products. All models support 220 V, 380 V, 415 V and 440 V; custom voltage is available.

What should I consider when installing the rib cutting machine?

After unpacking, inspect the rib cutting machine, blade assembly and accessories for transit damage. Ask a qualified electrician to complete power connection and verify correct motor rotation. Place the machine with sufficient space for operation and maintenance, level the unit and lock the casters. Before first use, remove, clean and fully dry the blade assembly and reinstall correctly. Run it idle for several minutes and check for abnormal noise or jamming before production.

How do I maintain the rib cutting machine, and what to do in case of faults?

Cut off power after use, take out and clean the blade assembly, then dry the rib cutting machine thoroughly. Do not spray or flush the motor area directly with water. Check nylon gears and bearings regularly, and apply food-grade lubricant when needed. Sharpen or replace blunt blades in time; never force feed materials. If abnormal noise, jamming or tripping occurs, power off and disconnect the machine immediately. Do not disassemble it by yourself; contact a professional technician.

What warranty and after-sales support are available for the rib cutting machine?

The rib cutting machine comes with a warranty. Covered failures are those of eligible components, excluding damage caused by misuse or improper operation. We provide remote guidance for installation, commissioning, troubleshooting and blade maintenance, plus spare parts delivery service. Wear parts including blades and gears are not covered under free warranty and can be purchased separately. Damage from improper operation, wrong wiring, unauthorized modification or water ingress is excluded.
