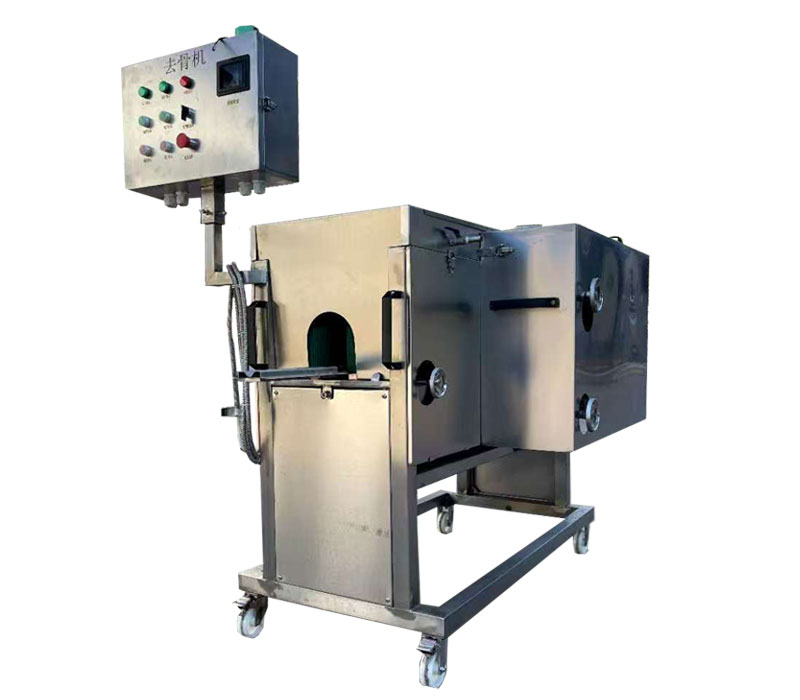

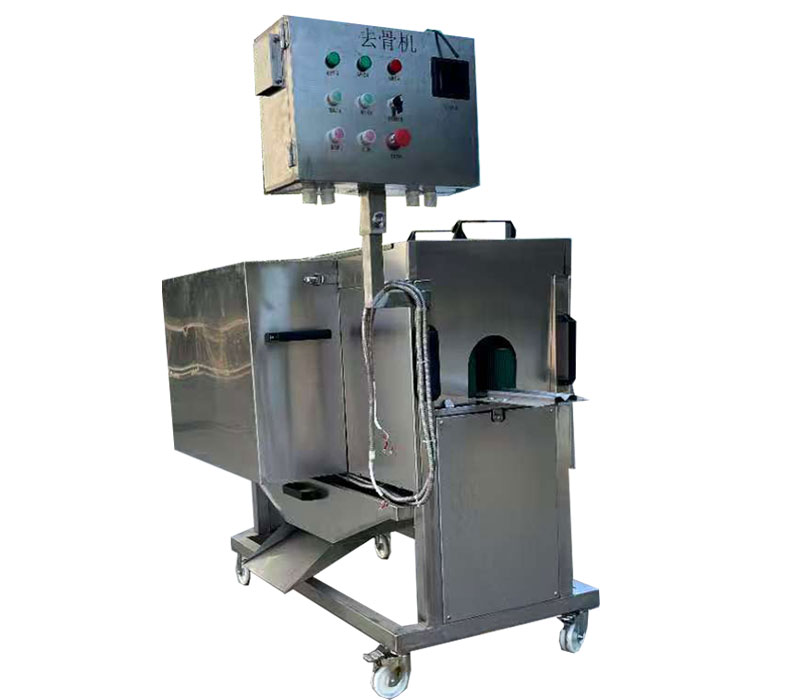

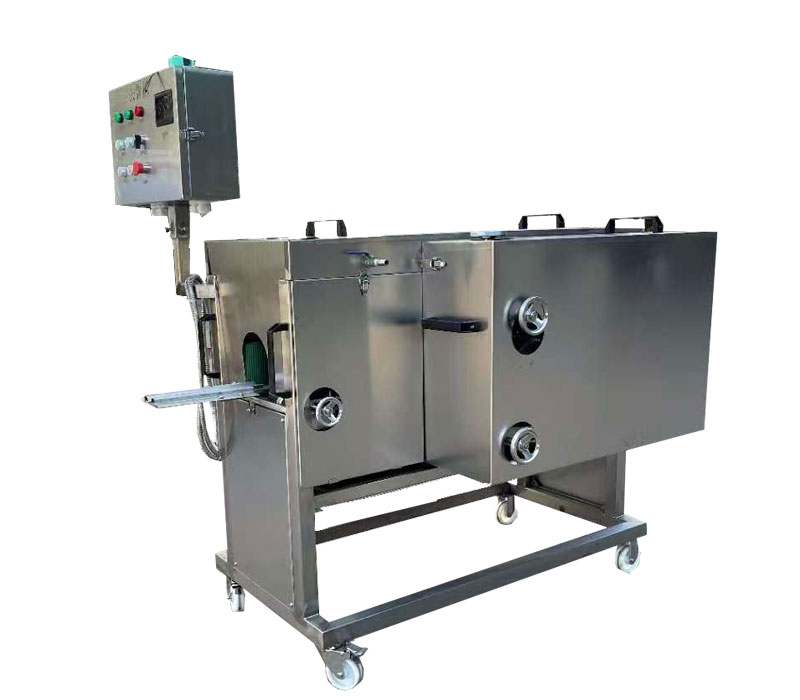

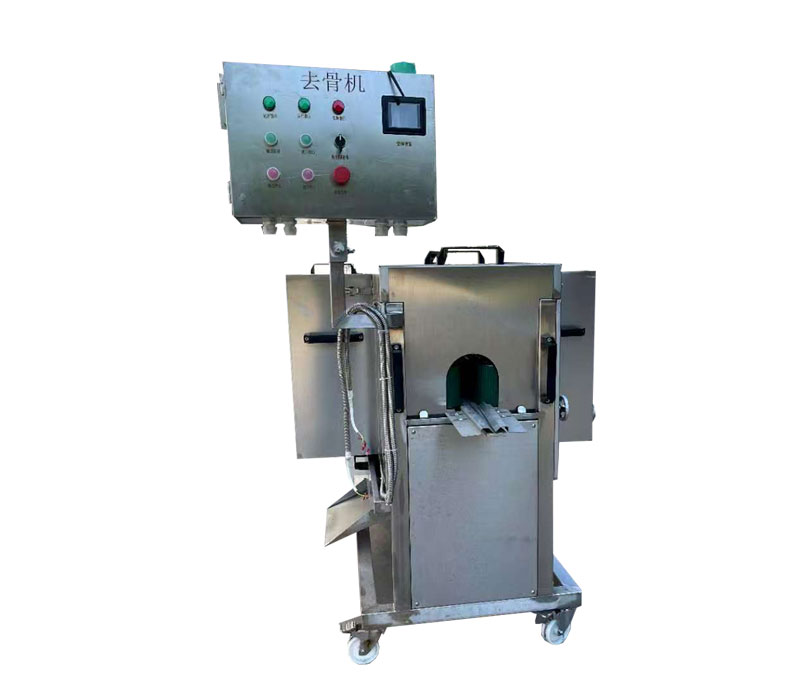

Fish Filleting Machine

The automatic fish filleting machine is designed to process a variety of fish species, catering specifically to both freshwater and saltwater fish. Below is a breakdown of the types of fish it can process for each category, along with the main features that assist in its operation.

For freshwater fish, this machine efficiently processes popular freshwater species, including:

• Grass Carp
• Black Carp
• Silver Carp
• Basa Fish
• Tilapia
• Saltwater Fish

For saltwater fish, the machine can handle species such as:

• Mackerel
• Sea Bass
• Spanish Mackerel
• Saury
• Large Yellow Croaker

The machine is designed with advanced features to guarantee high yield rates and maintain the quality of fish fillets. It incorporates three adjustable knife groups that efficiently remove bones while preserving the integrity of the fish’s internal organs. This flexibility allows for customization based on the size and type of fish being processed, resulting in a smooth, flat cut surface and yield rates between 50% and 70%, comparable to those achieved by skilled workers.

Key features that enhance the machine’s performance include:

• Adjustable Knife Groups: The three sets of adjustable knives can be fine-tuned for different fish sizes and species, enabling precise cuts and effective bone removal.
• High Processing Speed: With the ability to process 40 to 60 fish per minute, this machine significantly boosts productivity compared to traditional manual methods.
• Parallel Conveyor Belts: These belts guarantee stability and symmetry during the conveying process, reducing slippage and ensuring uniform segmentation.
• Adaptive Tensioning Device: This feature automatically adjusts to the fish’s size, optimizing cutting performance and minimizing waste of the fish meat.

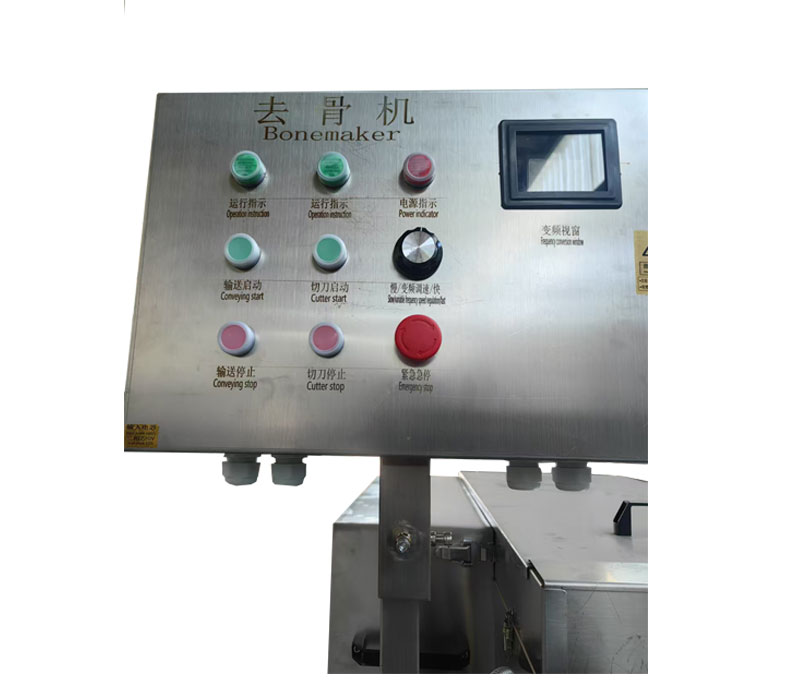

• User-Friendly Control Panel: The intuitive interface includes a one-button start option and an emergency stop switch, ensuring safe and straightforward operation.
• Transparent Protective Cover: The visual window design allows operators to monitor the machine’s performance in real-time, ensuring proper functionality throughout the processing.
• Together, these features enhance the machine’s efficiency, achieve high yield rates, and ensure the quality of the fish fillets produced.

To maintain optimal performance and longevity of the machine, please follow these key maintenance steps:

• Every time you clean the knife or any accessories that come into contact with food, ensure they are wiped with a dry cloth before reassembling them on the machine.
• The knife axis should be coated with cooking oil for lubrication and maintenance. If the knife becomes blunt, it can be removed and polished using an oilstone.
• Add engine oil to the reduction gearbox every six months, and lubricate the machine’s bearings, chains, gears, and other transmission parts on a quarterly basis.

To ensure safe operation and prevent accidents, please observe the following precautions:

• The machine should be placed in a stable location, and the casters on machines with wheels need to be locked in place.
• Ensure there are no foreign objects obstructing the machine’s feed port and confirm that the power supply and ground wire are connected according to the instructions provided on the sign.
• Do not place your hand inside the machine while it is running. If clothing becomes caught, immediately press the emergency stop button.
• After using the machine, always cut off the power supply before cleaning. Avoid cleaning the circuit part and be cautious of sharp components, such as knives, during disassembly and washing.
