Recently, a Vietnamese customer procured our brine injection machine to process bone-in poultry products including chicken mid-joint wings, chicken racks and chicken drumsticks. At the early stage of cooperation, the client was deeply concerned that the injection process might crack bones or bend and break needles, which would compromise product quality and operational continuity. To resolve their worries, we explained the machine’s bone-contact rebound protection system, a sophisticated mechanism that reliably safeguards both needles and bones from damage during operation. The subsequent on-site trial run delivered outstanding and consistent results when processing bone-in raw materials, completely eliminating the client’s misgivings and fostering a firm foundation for long-term partnership. The client’s confidence is fully earned by the machine’s remarkable performance in real production scenarios. This article will elaborate on the core strengths of our brine injection equipment.

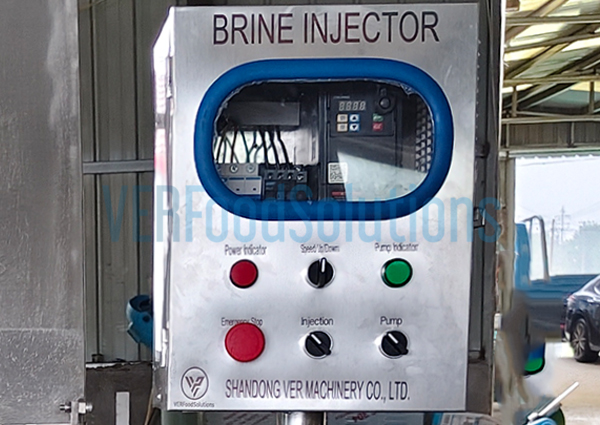

Stainless Steel Control Panel
Fitted with a neatly arranged stainless steel control panel, this meat brine injection machine centralizes all operational controls and status indicators including power lights, emergency stop, speed regulator, injection and pump switches for intuitive operation and precise parameter adjustment. Its built-in transparent shield guards internal electric parts against oil and water; featuring waterproof and anti-fouling properties, the panel is easy to sanitize and perfectly adapted to rigorous food production environments.

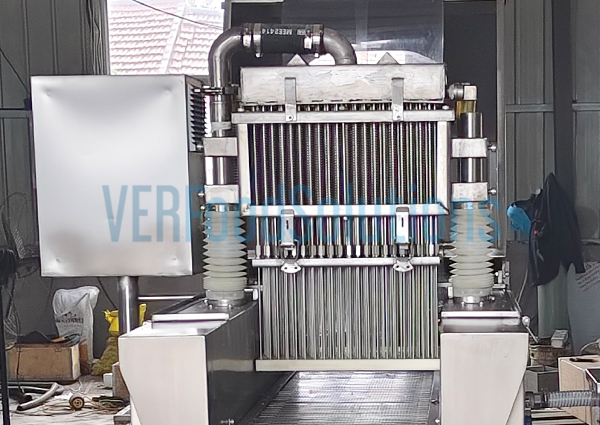

One-piece Integrated Needle Assembly
As the core part of meat brine injection machine, the integrated reinforced needle assembly adopts one-piece molding for superior structural rigidity and tight joints, eliminating loosening, shifting and damage risks. Boasting fine craftsmanship and reliable performance, it withstands long-duration high-frequency operation, minimizing failures, prolonging service life and guaranteeing consistent equipment running.

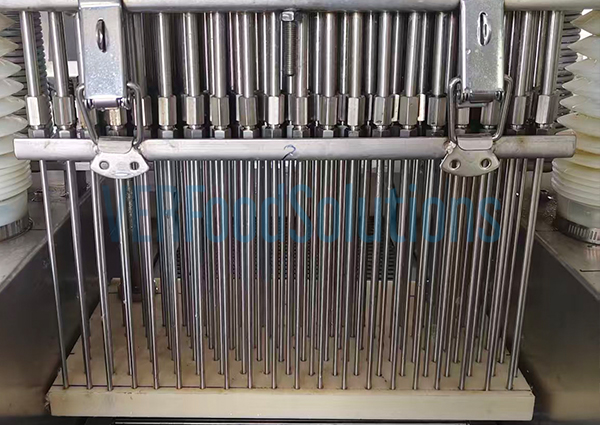

Individually Replaceable Needles
The meat brine injection machine’s needles support individual replacement to cut maintenance costs. Needle blockages from bone debris can be swiftly cleared with the dedicated cleaning tool, and faulty single needles can be swapped out without full machine disassembly. Available in two specifications — 3mm and 4mm outer diameters (2mm and 3mm inner diameters respectively) — they differ only in bore size and suit all meat types and injectant formulas. For optimal versatility and usability, the 4mm needle is our standard recommendation.

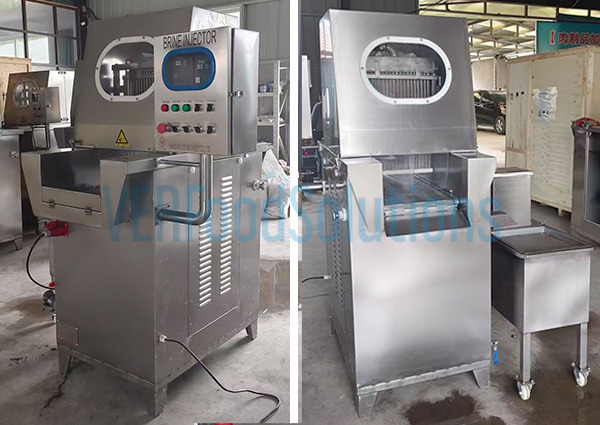

High Ratio & Stable Pressure
Capable of achieving an injection rate of 90% to 99% relative to meat weight, this meat brine injection machine delivers superior flavor infusion. Operating steadily within a pressure range of 0.6 to 0.8 MPa, it generates consistent and powerful pressure to drive marinade deep into the meat, ensuring even distribution of brine and seasonings and remarkably elevating the overall taste and quality of finished products.

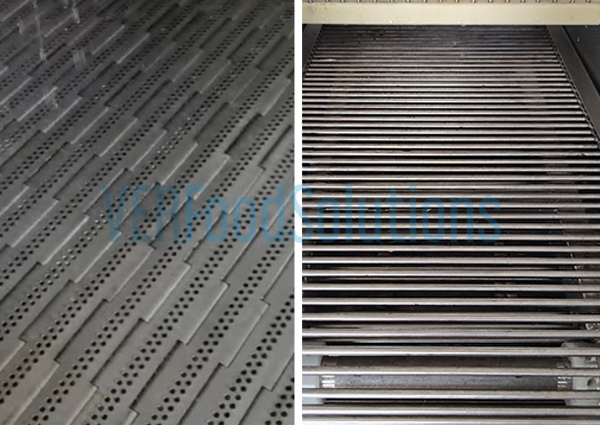

Adjustable Conveyor Speed
Featuring infinitely adjustable running speed from 3 to 15 meters per minute, the meat brine injection machine is fitted with two types of food-grade stainless steel conveyor belts that excel in corrosion resistance and easy sanitation. The mesh chain belt boasts wide openings, high load capacity and excellent air permeability, ideal for whole poultry, large meat cuts and bone-in products, while the plate belt with compact gaps and anti-slip pads prevents jamming, slippage and material leakage, perfectly suited for small portions like drumsticks, chicken breasts and wings to guarantee uniform injection and uninterrupted production.

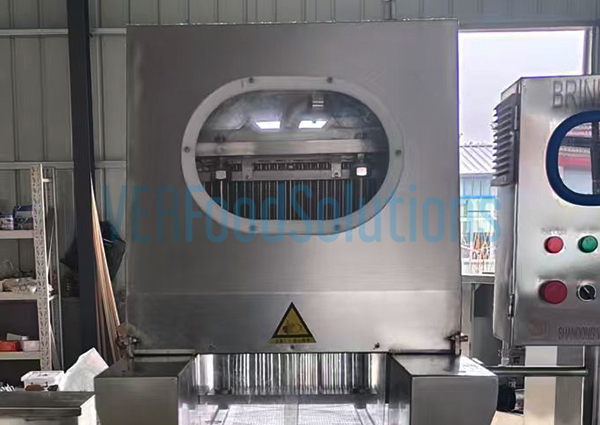

Visible Inspection Window
The meat brine injection machine is equipped with a dedicated observation window, allowing staff to monitor the overall operation of the needle assembly in real time during production. If any abnormalities such as blocked needle holes or jammed components are detected, the machine can be stopped immediately for repair, quickly eliminating the risk of production interruption and ensuring the stable and orderly operation of the production line throughout the entire process.

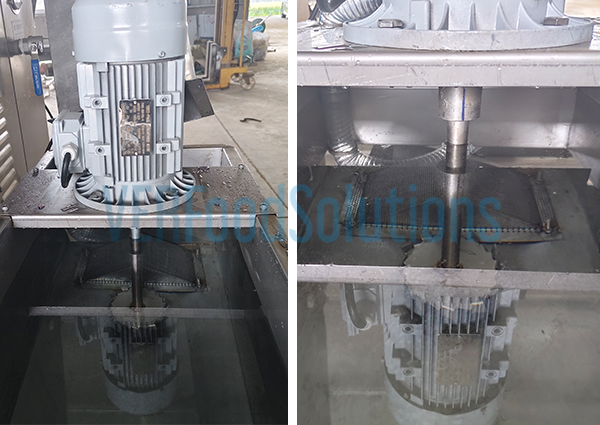

Brine Mixing Tank with Optional Agitator
Purpose-built for brine mixing, the dedicated tank offers an optional agitator to suit diverse production needs. It effectively stops sedimentation and maintains uniform consistency when handling high-protein or readily precipitating ingredients, while being unnecessary for common water-soluble materials. The mixed brine circulates continuously: pumped to the injector for use and then filtered via a three-stage system before flowing back to the tank for reuse. Clients may opt to install the agitator according to their specific formulations.

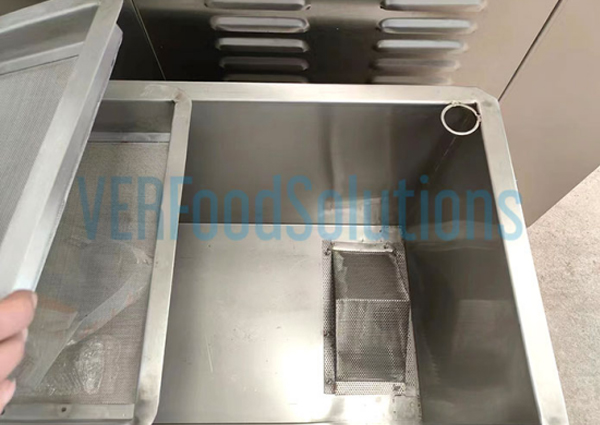

Three-stage Filtration System
The meat brine injection machine built-in three-stage filtration system adopts a layered structure with an overall precision of 80-100 mesh. The primary layer traps meat residues and large particles, while the subsequent fine filters deliver thorough purification. It effectively removes contaminants from circulating brine to avoid blockages and abrasion inside needles and pipelines, ensuring consistent injection, stable operation, prolonged service life of key parts and full compliance with food hygiene standards.
Pre-shipment Testing
Prior to delivery, we conducted comprehensive trials on drumsticks, chicken racks and wings as requested, targeting the client’s main concern over bone damage. Thanks to the well-coordinated needle design, pressure regulation and conveyor system, the meat brine injection machine delivers reliable bone-rebound performance, leaving bones fully intact without fractures, cracks or punctures. This prevents bone debris contamination and guarantees superior product quality and food safety for bone-in poultry processing.

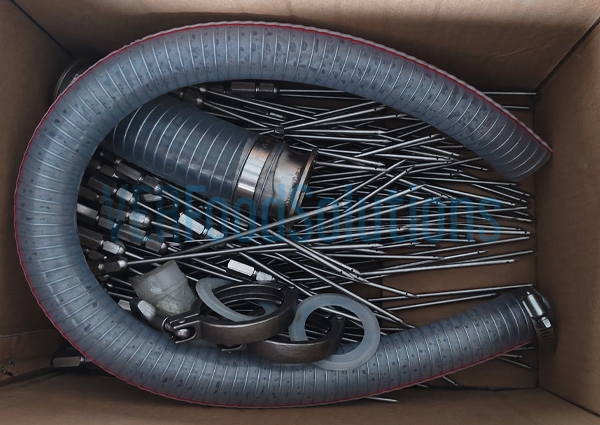

Accessories and Warranty
This brine injection machine is fully kitted out with a dedicated needle cleaner, silicone hoses, stainless steel clamps, sealing gaskets and 120 pre-installed needles for immediate use. We also provide 10 extra needles for daily maintenance, plus a full set of 120 spare needles as requested to avoid production downtime. We offer comprehensive after-sales support: the machine and core components enjoy a 12-month warranty, with wearing parts covered for three months. Every unit undergoes strict pre-shipment testing, and we supply relevant test documents and instructional videos. The included spare parts can support up to five years of operation, while our team delivers 24/7 online assistance and lifelong remote technical support to resolve issues promptly.

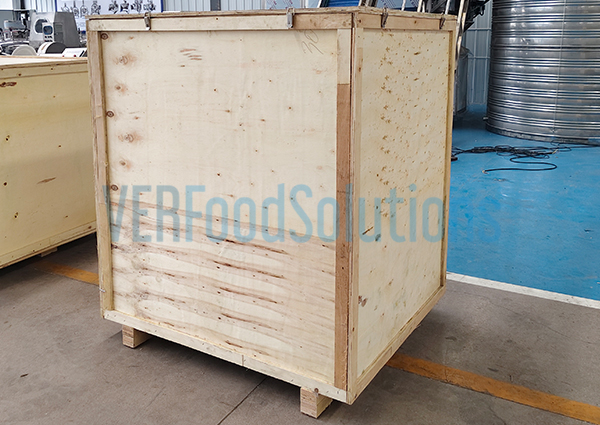

Premium Ply Wooden Packaging
All delivered units including the 120-needle meat brine injection machine are packed in export-grade thick multi-layer plywood crates. Sturdy and durable, these cases feature outstanding moisture, shock and pressure resistance. Custom internal cushioning and reinforcements firmly fix the equipment to shield it from impacts, vibration and humidity in transit. Fully compliant with international shipping standards, the packaging is ideal for long-haul sea and land transportation, delivering comprehensive protection and ensuring intact delivery worldwide.
In summary, the VERFOODSOLUTIONS meat brine injection machine has fully resolved the Vietnamese client’s key concerns and gained full recognition with its dependable performance. Equipped with advanced bone-rebound protection, high-efficiency injection and user-friendly sanitizing design, it excels at processing bone-in poultry including chicken wings, racks and drumsticks while preventing bone fracture and needle damage. Delivering a safe, efficient and trustworthy solution for meat producers, it enhances flavor, product uniformity and overall productivity across various meat items. Contact us for VERFOODSOLUTIONS to achieve consistent, reliable injection and elevate your meat processing performance.
