Paraguayan Client Chooses Air Bubble Water Spraying Fruit Vegetable Washing Machine for Herbs

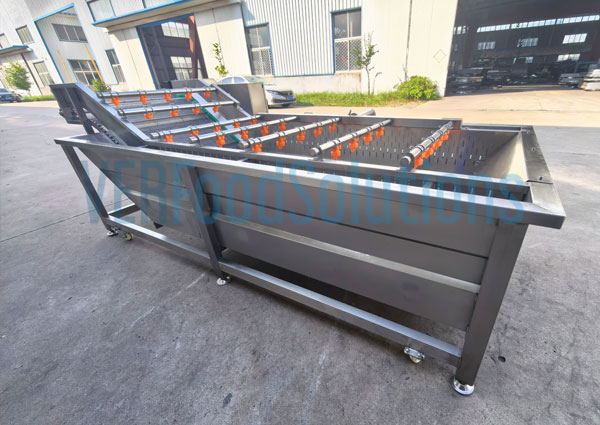

We recently completed and delivered a 3-meter air bubble water spraying fruit vegetable washing machine to a client in Paraguay. The client purchased this unit specifically to wash herbs—such as mint, lemon verbena, and blessed thistle—which are subsequently blended with water to create herbal juices for the health beverage market. Equipped with both a bubble-generation system and a conveyor belt, the machine significantly enhances the efficiency of washing leafy vegetation, ensuring the thorough removal of soil and dust. Beyond leafy greens, this versatile equipment is also suitable for cleaning root vegetables, various other leafy vegetables, fruits, fish, and even packaged snacks. Let’s take a closer look at this advanced washing system and explore how it meets the demands of commercial food preparation!

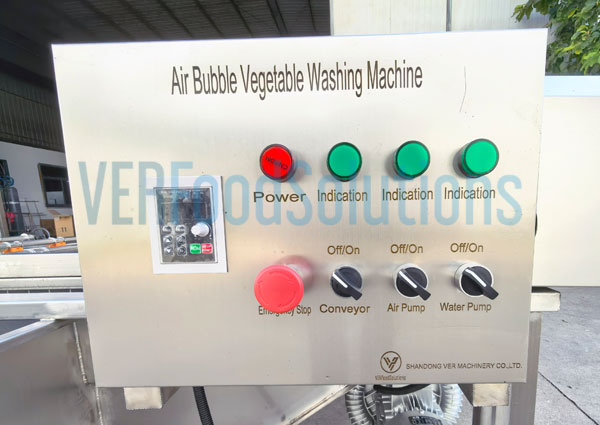

1. User-Friendly Control Panel

This air bubble water spraying fruit vegetable washing machine features an intuitive, user-friendly control panel. Each function—such as the power switch, conveyor belt, water pump, and air pump—is clearly labeled, making the system easy to operate. Users can adjust settings like conveyor belt speed and air-bubble intensity directly from the panel, allowing even first-time users to get up and running quickly. Furthermore, we offer language customization for the control panel; for instance, we can provide versions tailored for Spanish or Portuguese speakers. The panel also utilizes a snap-fit ​​design to facilitate routine maintenance and troubleshooting, allowing users to easily open the unit to replace electrical components or inspect internal wiring.

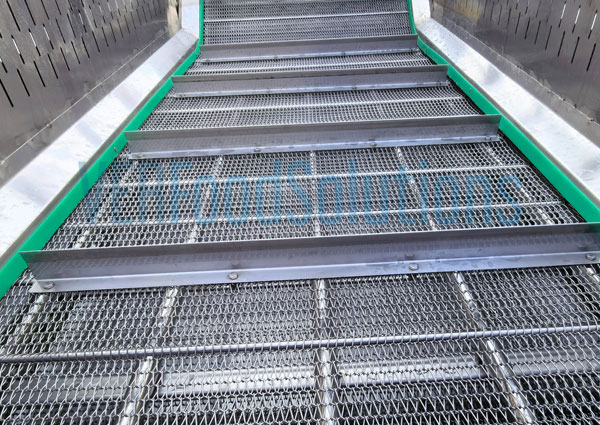

2. Optional Conveyor Belt

This air bubble water spraying fruit vegetable washing machine features a 304 stainless steel conveyor belt, a material renowned for its durability and corrosion resistance. For a client in Paraguay who needed to wash herbs—such as mint, lemon verbena, and blessed thistle—which consist of both leaves and stems, we recommended a stainless steel mesh belt with large openings. This design allows for thorough water spray coverage, making it ideal for washing larger plants or vegetables. The conveyor speed is adjustable, ranging from 0.025 m/s to 0.04 m/s, to accommodate produce with varying levels of soiling. We also offer a variety of other conveyor belt options: plastic modular belts are suitable for delicate produce like grapes and tomatoes; stainless steel slat belts are ideal for small leafy greens (such as spinach) or small fruits (like dates and oranges); and stainless steel mesh belts are specifically designed for larger items, including cucumbers, peaches, and whole plants.

3. Drainage System

Our 3-meter air bubble water spraying fruit vegetable washing machine is equipped with a drainage outlet. The valve remains closed during standard washing operations and can be opened after production to drain residual wastewater and accumulated debris from the tank. It also facilitates rapid water discharge, the flushing out of sediment, and the complete emptying of the tank for equipment maintenance. This user-friendly design ensures smooth operation and enhances drainage efficiency.

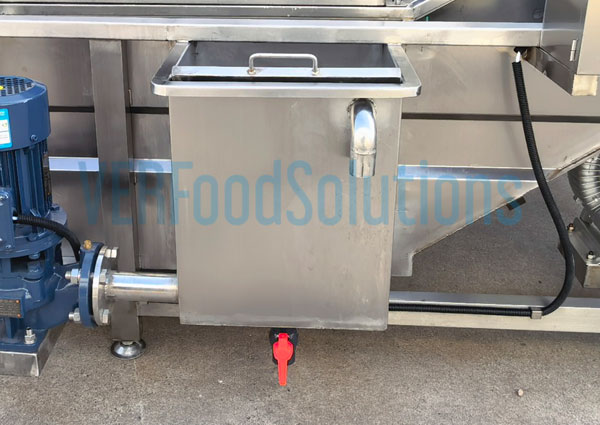

4. Water Filter Tank

This air bubble water spraying fruit vegetable washing machine includes a side-mounted filter tank. As the machine operates, water continuously circulates through this tank, effectively filtering out impurities and maintaining water cleanliness. This design enables the repeated recycling of water, which helps reduce costs and saves time. The stainless steel pipe fitting on the side serves as the circulation outlet, delivering filtered, clean water to the pump for continuous supply to the cleaning tank. At the bottom of the tank, there is a PP drain ball valve equipped with a red handle; opening this valve after production allows for the direct discharge of wastewater and accumulated sediment. This facilitates rapid cleaning, prevents impurities from entering the main circulation piping, protects the water pump, and reduces the risk of equipment clogging.

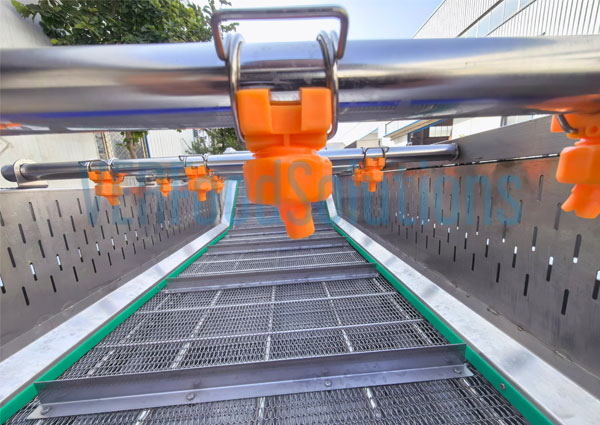

5.Adjustable Spray Nozzles

For our 3-meter-long air bubble water spraying fruit vegetable washing machine, each spray pipe is equipped with 4 to 5 staggered nozzles, ensuring comprehensive coverage and highly efficient cleaning of the produce. We also offer customization options if you wish to adjust the number of nozzles. The nozzles are detachable, and their orientation can be manually adjusted, allowing users to modify the spray angle to achieve different cleaning results. Furthermore, we provide a choice between plastic and stainless steel nozzles. Plastic nozzles offer adjustable spray angles, providing greater flexibility and a wider coverage area, while stainless steel nozzles feature fixed spray angles and are exceptionally robust, durable, and stable in performance. You may select the type that best suits your specific needs and preferences.

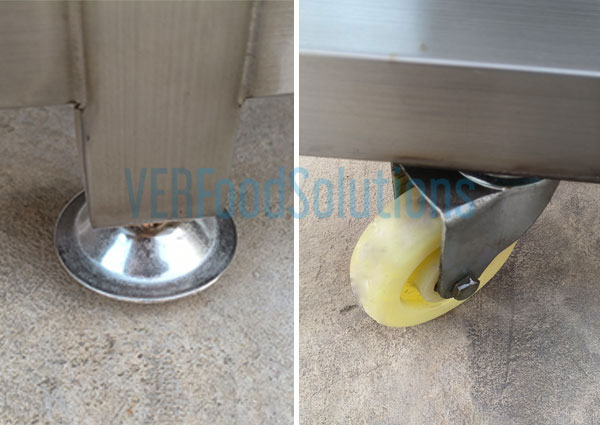

6. Switchable Wheels and Support Feet

This air bubble water spraying fruit and vegetable washing machine is equipped with both mobile casters and sturdy support feet. The height of the support feet is adjustable; when raised, the casters come into contact with the ground. When lowered, the support feet lift the entire machine, transferring the load away from the casters. This prevents the wheels from deforming under long-term pressure, ensures stable operation, and keeps the machine securely in place. This dual-configuration design balances the need for easy mobility with the requirement for a stable, fixed position during production.

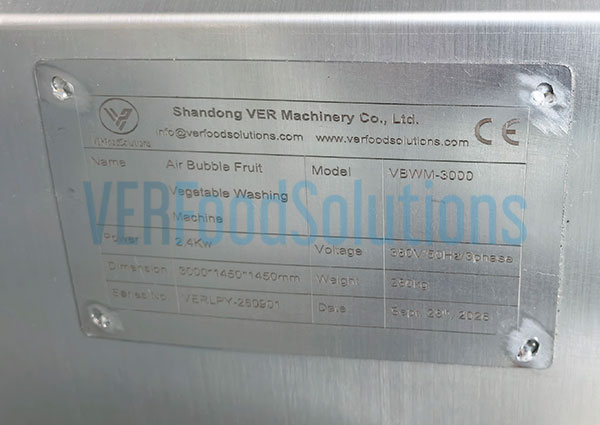

7. Customized Voltage

Designed for a 380V, 50Hz three-phase power supply, this air bubble water spraying fruit vegetable washing machine is fully compatible with the 380V, 50Hz three-phase industrial power systems used by our clients in Paraguay. Additionally, we can customize the motor to meet your local voltage requirements. Regardless of the voltage standard in your region, we can tailor the equipment to your specific needs, ensuring stable and reliable operation in your local environment.

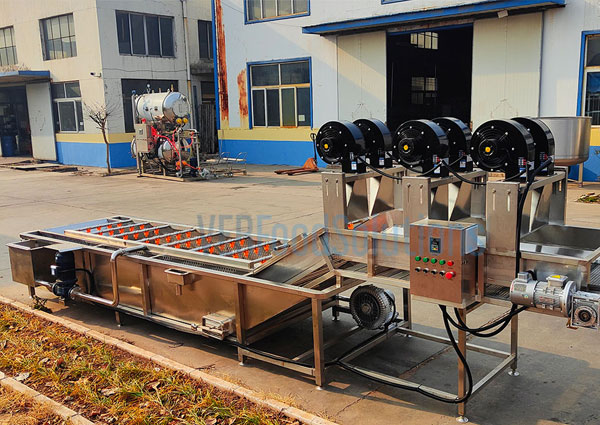

8. Full Line Integration

The air bubble water spraying fruit vegetable washing machine can be integrated with various auxiliary units to form an automated pre-processing production line. Once the materials are washed, a mesh-belt elevator transports them to the next stage; a vibrating dewatering unit removes most of the free water from the surfaces, and an air-knife drying system blows away any remaining droplets. This integrated setup enables a continuous, seamless process—washing, conveying, dewatering, and drying—with adjustable speeds for each piece of equipment to accommodate different types of produce. This solution significantly reduces labor requirements and boosts production capacity, allowing items such as pre-cleaned vegetables, berries, and edible mushrooms to proceed directly to packaging or quick-freezing.

In summary, our 3-meter-long air bubble water spraying fruit vegetable washing machine is specifically designed for cleaning items such as fruits and leafy vegetables. It is highly versatile and ideally suited for food processing facilities, including beverage production plants and central kitchens. Constructed from high-quality stainless steel, the unit offers customizable configurations, multi-language control panels, and compatibility with regional electrical standards to meet your unique requirements. We are committed to providing comprehensive, top-tier support from stringent pre-shipment testing to robust after-sales service to ensure your success every step of the way. Contact us today to learn more or to discuss your specific needs, and let us help you upgrade your food processing operations.
