Meat Mincing Machine
Main Benefits
- Suits for various products, both fresh& frozen meat, vegetables, nuts grinding
- Low power, power saving, cost saving and high production efficiency
- Protect the muscle fiber tissue and maintain the nutrition and meat flavor most
- Positive rotation and reverse function, impossible to cause blockage of meat
- Adopts belt drive, which runs smoothly and has low noise
- Hardly noticeable temperature rise with the final product
- Low temperature rise of meat, good for preservation
- High efficiency with one operator needed only
Overview

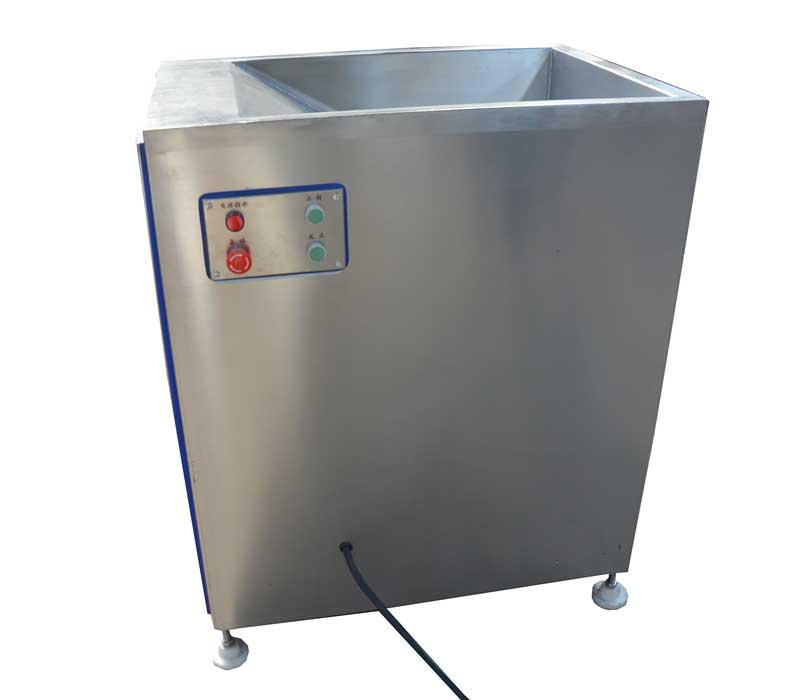

Meat Mincing Machine
By different combination of the orifice plate, VER meat mincing machine could grind the whole piece of the frozen meat directly and mince the unfrozen pieces of meat to make different specifications of meat particles by the design of a variety of orifice combination for orifice plate. It is more suitable for mincing different products such as fresh and frozen pork, beef, mutton, mutton and fish meat, etc.
Whole machine body made of stainless steel, VER meat mincing machine compliant with hygienic standards, and machine surface smooth and easy to clean. With large feeding inlet and smooth raw material adding, high-efficiency production, reasonable design, and low friction during the meat grinding process, which is conducive to the preservation of meat quality.
Videos
Features
- Quick release handle and easy removal of auger and cutter, easy operated.
- With all kinds of orifice plate combinations, could be suitable for various products, including frozen meat, fresh meat, garlic, pepper, and peanuts,etc.
- The whole machine body and all the parts that touch the meat are made of stainless steel 304, meet the hygienic standards.
- The whole grinding process is very short and make little tempreture increasing, could mostly keep the freshness for the meat.
Specifications
| Model | MGM100 | MGM120 | MGM130 |
| Capacity(Kg/h) | 300-600 | 600-1000 | 800-1500 |
| Grinding Hole Diameter(mm) | 4,6,8,10,12 | 4,6,8,10,12 | 4,6,8,10,12 |
| Grinding Plate Diameter(mm) | 100 | 120 | 130 |
| Dragon Speed(r/min) | 240 | ||
| Feed Inlet Size(mm) | 340*270 | 340*315 | 340*315 |
| Power(Kw) | 1.9 | 7.5 | 11.0 |
| Outside Dimension(mm) | 960*560*960 | 1100*580*1100 | 1100*580*1100 |
| Machine Weight(Kg) | 120 | 180 | 200 |
| Voltage(V) | 240/380/415/Customized | ||
FAQ
Why should I buy one meat mincing machine?
VER frozen meat grinder is widely used in canteens, hotels, food processing plants to mix all kinds of materials to prepare raw materials for steamed buns, bacon, sausages and dumplings, etc.
The meat grindere machine can directly mince frozen meat or fresh meat without damaging the muscle fiber tissue. The temperature rise of the meat is small, which is conducive to the preservation of the product and prolongs the shelf life. It can grind the frozen meat at -18°C without destroying the muscle fiber structure.
What is the working principle for the meat mincing machine?
When the frozen meat grinder is working, the raw meat is chopped by the cutting action formed by the rotating cutting blade and the edge of the hole of the orifice plate, also under the action of the screw extrusion force, the raw material is continuously discharged.
According to different raw material, corresponding tools and orifice plates can be configured to process particles of different sizes to meet the technological requirements for next processing steps.
How to choose right meat mincing machine?
We will recommend you suitable meat mincing machine model according to your required capacity, meat size and shape. Normally there are 4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm and 20mm size meat grinder plate to choose.
What is the warranty for the meat mincing machine?
-We will send you all detail operation videos, including how to operate and maintenance this machine.
-We provide 12 months warranty time once delivery for frozen meat mincing machine.
-With machine delivering, we will send you full set of spare parts with the machine.
INTERESTING? REACH US TO GET Meat Mincing Machine PRICE NOW!
