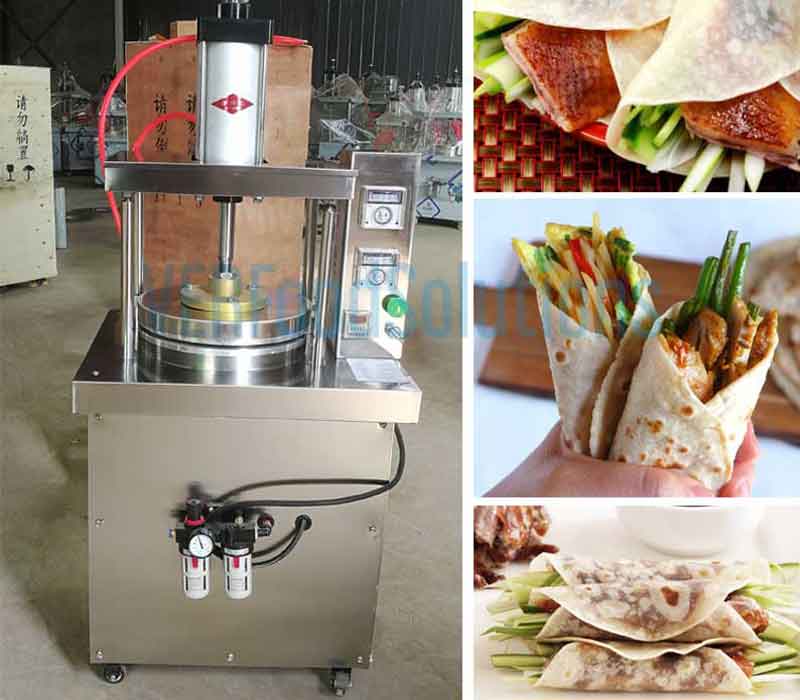

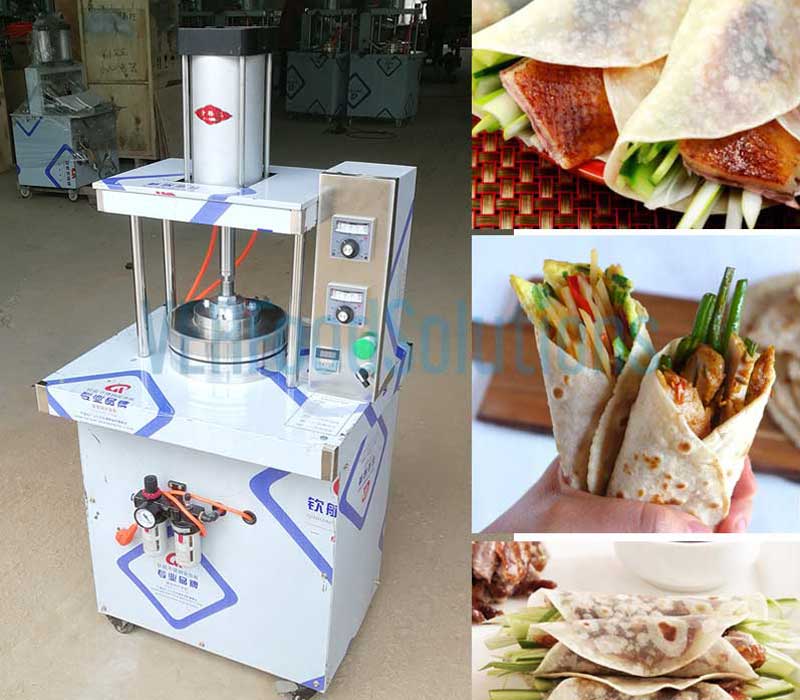

Pneumatic Chapati Press Machine
Main Benefits
- Easy automatic operation, 500-600Kg/hour high capacity
- Chapati, roti, tortilla, Chapati,thin pancake, egg cake, flat bread etc. can be made by this heat press machine.
- Customized size various from 160mm to 800mm available to meet specific demand.
- Made from stainless steel, complies with food safety hygiene standard.
- Compact structure, save room.
- Easy operation, high capacity.
- Heating time 0-99seconds adjustable to meet different requirements.
Overview
VER Pneumatic chapati press machine makes chapati roti thin pancake, egg cake, flat bread flattened bread from dough balls. Instead of hand-rolling the pie, saved your working time and manual work. Equipped with automatic temperature control system and time system modification, temperature can be set as required and it only takes 0-99.99 seconds to automatically finish work, high efficiency of energy conservation and environmental protection. This automatic chapati press machine produce cakes sizes various from 160mm to 800mm.
Videos
Features
- Chapati, roti, tortilla, Chapati, thin pancake, egg cake, flat bread etc. can be made by this heat press machine.
- Customized size various from 160mm to 800mm available to meet specific demand.
- Made from stainless steel, complies with food safety hygiene standard.
- Compact structure, save room.
- Easy operation, high capacity.
- Heating time 0-99seconds adjustable to meet different requirements.

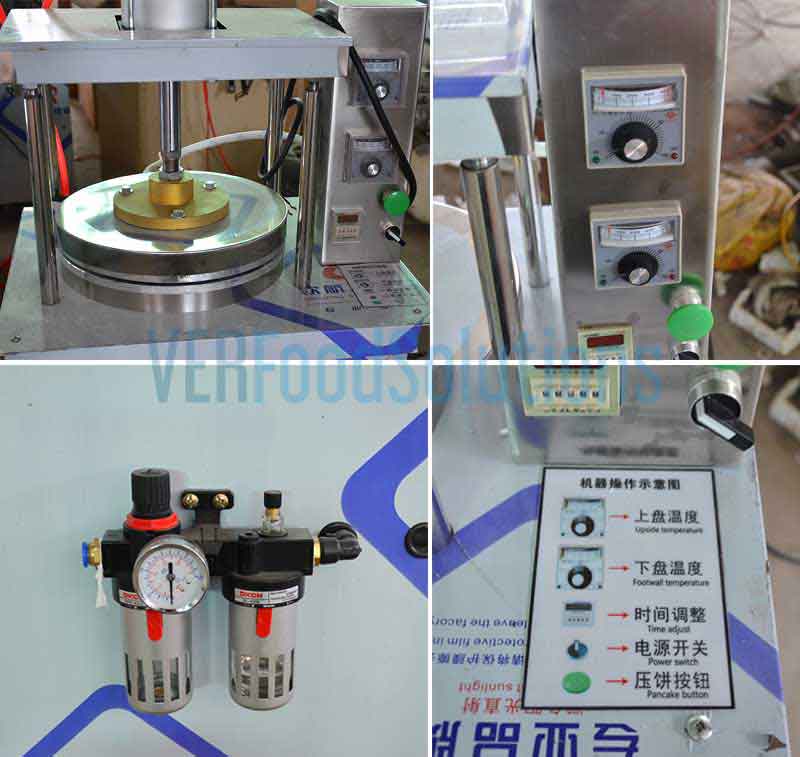

1.Pneumatic Chapati Press Machine Detail Parts Show

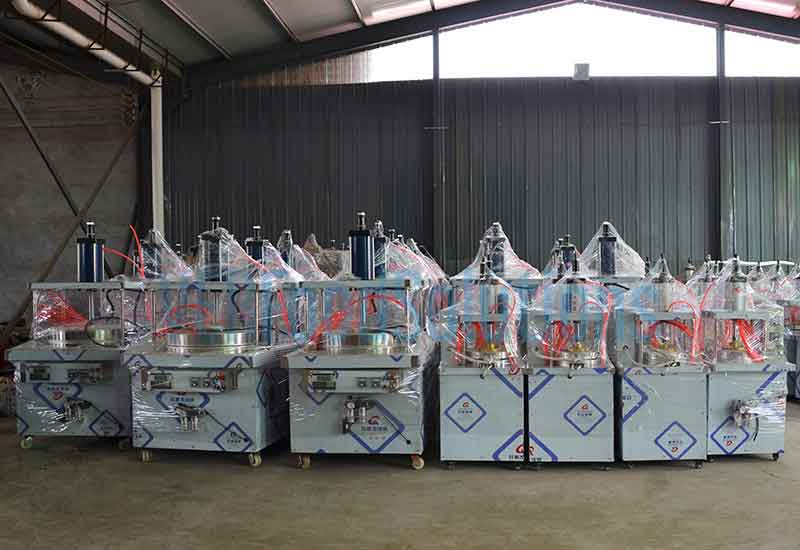

2.Mass Production of Pneumatic Chapati Press Machine
Specifications
Specification
| Model | Capacity (piece/h) | Pancake Max Size | Pancake Thickness | Heating Time | Heating Temperature | Overall Size |
| YBJ-20 | 400~1200 | 160mm | 1~4mm | 0~9 second | 0-300ºC | 600×450×1350mm |
| YBJ-30 | 400~1200 | 280mm | 1~4mm | 0~9 second | 0-300ºC | 650×500×1400mm |
| YBJ-40 | 400~1200 | 380mm | 1~5mm | 0~9 second | 0-300ºC | 750×630×1450mm |
| YBJ-50 | 60~500 | 500mm | 1~5mm | 0~99second | 0-300ºC | 820×730×1450mm |
| YBJ-60 | 60~500 | 600mm | 1~6mm | 0~99 second | 0-300ºC | 980×850×1600mm |
| YBJ-70 | 60~500 | 700mm | 1~7mm | 0~99 second | 0-300ºC | 1080×960×1600mm |
| YBJ-80 | 60~500 | 800mm | 1~8mm | 0~99 second | 0-300ºC | 1460×1200×1600mm |
FAQ
What is the size of chapati we can make by this chapati press machine?
Customized size various from 180mm to 800mm available to meet specific demand.
How thin chapati or roti can the chapati machine make?
Thickness can be adjustable form 1-8mm according to different diameter of chapati or roti.
Can the power voltage customized?
Yes, Automatic dough roller machine motor can be customized as 110V/220V/380V/415V etc. according to your local voltage.
What is your delivery time?
Usually we need 15 days for delivery, if need customize voltage max. 20 days.
What is your warranty for the chapati press machine?
We provide 12 months warranty for chapati press machine.
How do you guarantee after sale service?
We provide 12 month warranty, all spare parts, operation videos will be sent when delivery, sale service team reply you 7*24 hours, engineers available overseas.
