VERFOODSOLUTIONS Spring Roll Sheet Machine Delivered to Colombia for Spring Roll Production

Different countries and regions around the world boast their own unique thin wrappers, such as China’s spring roll sheets, India’s roti, France’s crepes, and Mexico’s tortillas. These delicacies have gained popularity worldwide and have become essential components of the culinary industry. Despite their cultural differences, these products share common characteristics: they are incredibly thin yet chewy.

So, how can food manufacturers stand out in this competitive market? The answer lies in our professional spring roll sheet machine.

Recently, our Colombian customer ordered a gas-heated spring roll sheet machine. They plan to use it to produce 22cm diameter thin spring roll sheets, which will be used to craft a variety of delicious wraps.

Although our spring roll sheet machine features a simple design, it is packed with thoughtful details. Let’s take a closer look.

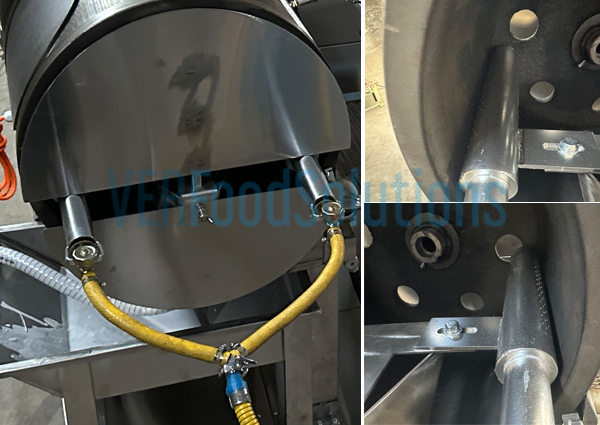

1. Dual Flame Burners

The gas-heated spring roll sheet machine features a dual flame burner design. The burners are integrated inside the drum, providing efficient and even heating. To operate, simply turn on the gas supply and ignite the flame at the burner’s gas outlet.

An adjustable knob on the gas line allows for precise control of the gas flow, enabling you to regulate the flame size and maintain the desired temperature.

Additionally, the dual flame burners are designed for easy disassembly and installation, facilitating routine maintenance and cleaning. When installing the burners, ensure they are positioned approximately 5 cm away from the inner wall of the drum to ensure stable, continuous combustion.

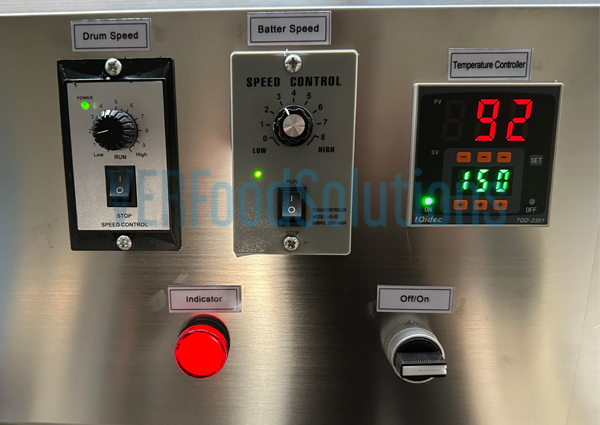

2. Control Panel

The control panel of the gas-heated spring roll sheet machine is designed with user-friendly, clearly labeled functions for easy operation.

The “Drum Speed” control manages both the on/off status and the rotation speed of the drum. Turning the knob clockwise increases the drum speed, while turning it counter-clockwise decreases it.

The “Batter Speed” control regulates the activation and deactivation of the batter spray, as well as its discharge speed, using the same intuitive speed adjustment as the drum.

On the far right is the temperature controller. Since the heating temperature depends on the gas supply, this controller displays the current temperature but does not directly regulate it.

The control panel also includes an “On/Off” button and a power indicator light, ensuring safe and convenient operation.

3. Roller Diameter

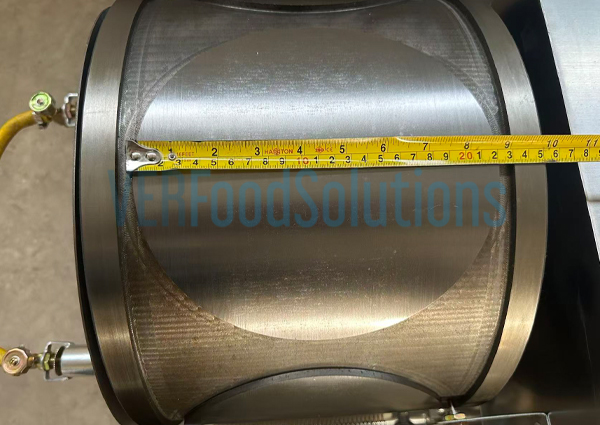

One of our Colombian clients requested this gas-heated spring roll sheet machine to produce sheets with a diameter of 22cm. In response, we customized the roller diameter to match their specifications.

Additionally, the rollers for the gas-heated spring roll sheet machine can be designed in various configurations—such as double rows, square shapes, and more—tailored to meet different customer requirements.

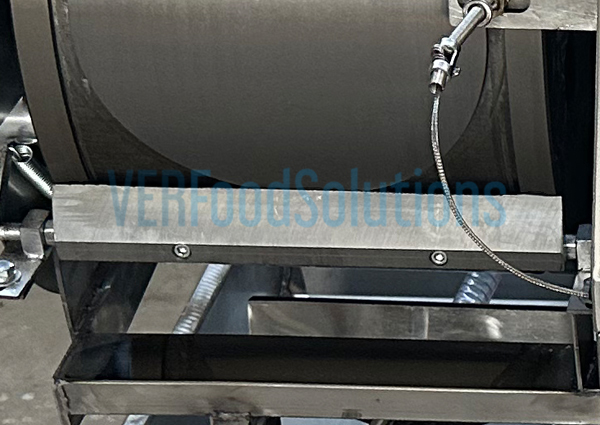

4. High-Quality Scraper

The gas-heated spring roll sheet machine is equipped with a premium-grade scraper crafted from durable, food-grade materials. Designed to fit snugly against the roller surface, this scraper ensures precise separation of the spring roll sheet from the roller without causing tears, breaks, or deformation. Its smooth, polished edge minimizes friction and prevents damage to delicate dough, resulting in a consistently clean and even sheet. The high-quality construction not only guarantees longevity and reliable performance under continuous operation but also facilitates easy cleaning and maintenance. This ensures a smooth, efficient production process with high-quality output and minimal downtime.

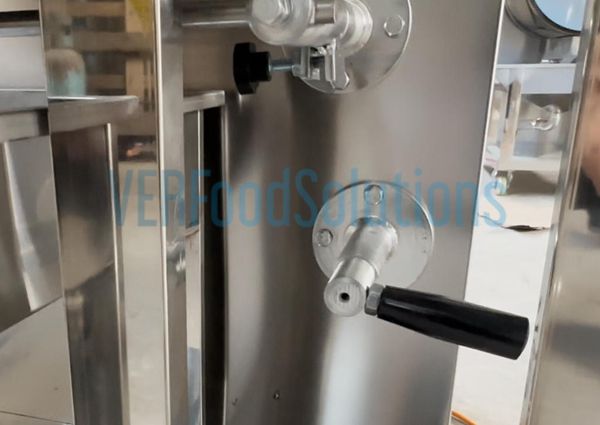

5. Adjustable Batter Spray Height

The gas-heated spring roll sheet machine is equipped with two handles on the left side for adjusting the discharge height.

The larger handle provides a broad adjustment range. Turning it clockwise raises the discharge point, bringing it closer to the roller; turning it counter-clockwise lowers the discharge point, moving it farther from the roller.

The smaller knob allows for precise, fine-tuned adjustments. Turning it clockwise slightly raises the discharge point, while turning it counter-clockwise lowers it, ensuring optimal positioning for different production needs.

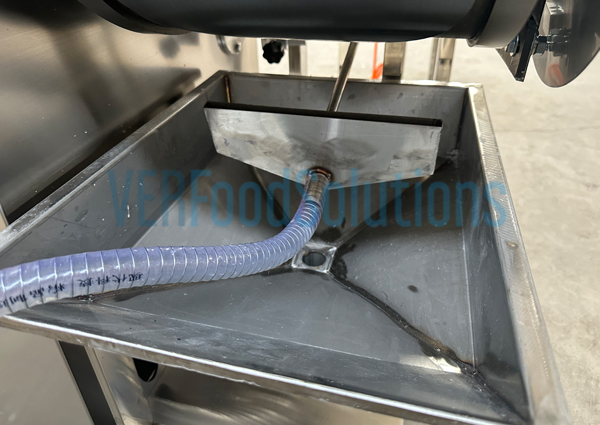

6. Batter Hopper

The batter hopper of the gas-heated spring roll sheet machine is designed to collect batter efficiently. A pipe at the bottom of the hopper directs the batter to a control box on the left. Inside the control box, a pump draws the batter into an external pipe, from which it is then expelled through the outlet.

Additionally, this system enables batter recycling, helping to reduce waste and improve overall efficiency.

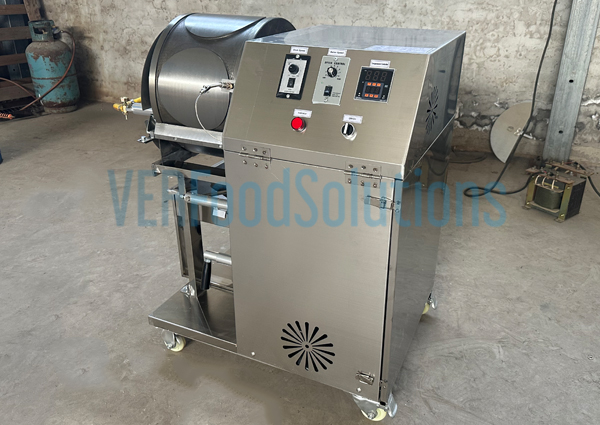

7. Stainless Steel

The entire gas-heated spring roll sheet machine is constructed from 304 stainless steel, offering an attractive, glossy finish. This material is not only durable and heat-resistant but also rust-proof and corrosion-resistant, ensuring the machine will not deform and significantly extending its service life.

Moreover, stainless steel is easy to clean and maintain. Even if batter spills onto the machine, it can be effortlessly wiped away, ensuring hygiene and longevity.

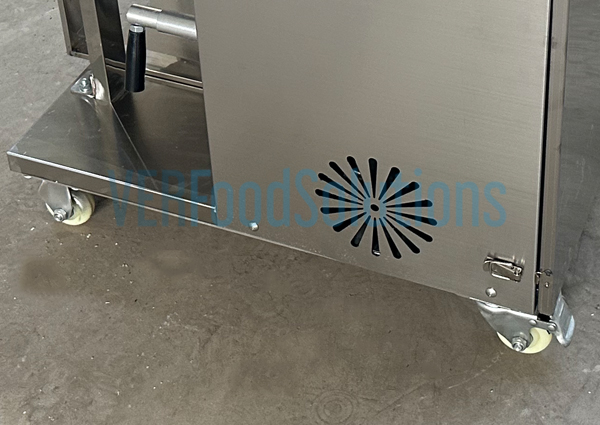

8. Casters

The gas-heated spring roll sheet machine is fitted with casters at the bottom, enabling effortless repositioning as needed. Additionally, these casters are equipped with locking mechanisms; simply engage the locks to secure the machine in place during operation, ensuring stability and safety.

9. Air Cooling Belt Conveyor

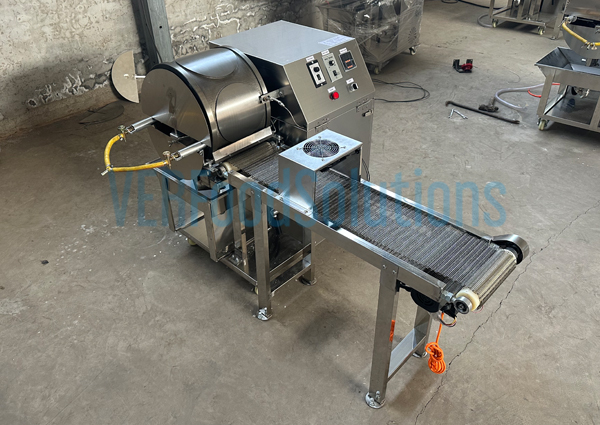

The gas-heated spring roll sheet machine can be used in conjunction with an air cooling belt conveyor.

The conveyor is equipped with a fan to effectively cool the cooked spring roll sheets, preparing them for subsequent processing.

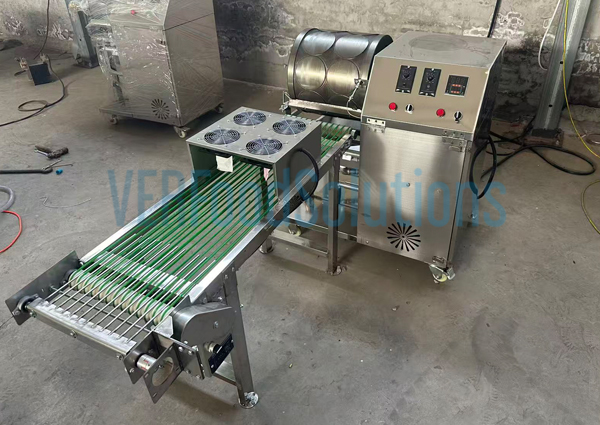

Additionally, some customers require stacking multiple spring roll sheets for packaging. To meet this need, we can install a stacking device on the air cooling belt conveyor. This device features two components: a sensing mechanism and a flip stack function. When a spring roll sheet passes the sensor, the flip stack mechanism automatically flips it and places it onto the next section of the conveyor, enabling efficient stacking of multiple sheets for packaging.

The charm of cuisine lies in the way flavors transcend borders, creating a universal resonance among taste buds worldwide. A high-quality gas-heated spring roll sheet machine serves as a reliable bridge to this culinary harmony. Whether addressing the specific needs of a Colombian customer or adapting to regional flavor preferences, we are committed to supporting every culinary innovator with flexible designs and dependable quality.

We not only provide practical, innovative production equipment but also continuously optimize solutions tailored to your regional characteristics and production capacity requirements. From equipment customization and installation to after-sales maintenance, our professional support ensures a seamless experience throughout your journey.

If you are interested in starting this business, please feel free to contact us for a quote.
