Successful Delivery of VERFOODSOLUTIONS’ Vacuum Twin Shaft Paddle Mixer to Malaysia: Enhancing Meat Processing Efficiency

VERFOODSOLUTIONS’ latest innovation, the vacuum twin shaft paddle mixer, has been successfully delivered to a valued customer in Malaysia. The customer ordered a 300L model capable of processing approximately 200-250 kg of products per batch. This versatile machine is used to process beef and pork, with the addition of various seasonings to create a wide range of flavorful meat fillings, ultimately producing different types of meatballs.

Thanks to this advanced equipment, our customer has significantly improved work efficiency—completing what previously took two people in half a day in just one hour. As an essential tool for filling processing, the vacuum twin shaft paddle mixer has quickly become the first choice for many investors in the food industry.

Follow us to learn more about the innovative design and numerous advantages of this machine, showcased through the successful application with our Malaysian client.

1. Control Panel

The control panel of the vacuum twin shaft paddle mixer is thoughtfully designed and neatly organized. Each button’s function is clearly labeled for easy operation. Additionally, the interface can be customized into different languages to suit customer preferences, ensuring user-friendly operation. Let’s now explore the functions of the various buttons:

(1) Pneumatic Lid Lifting Device

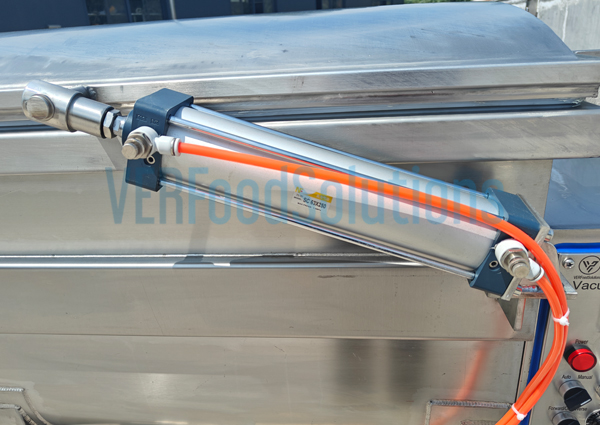

The vacuum twin shaft paddle mixer is equipped with an air pump, then it can pneumatic control opening and closing system.

The cover control handle design is ergonomic: turning the handle to the left opens the cover, while turning it to the right closes it, ensuring ease of operation and safety.

(2) Time Setting Function

The vacuum twin shaft paddle mixer features a built-in timing function, allowing you to set the operating duration precisely. This enables the machine to run continuously without the need for constant manual oversight.

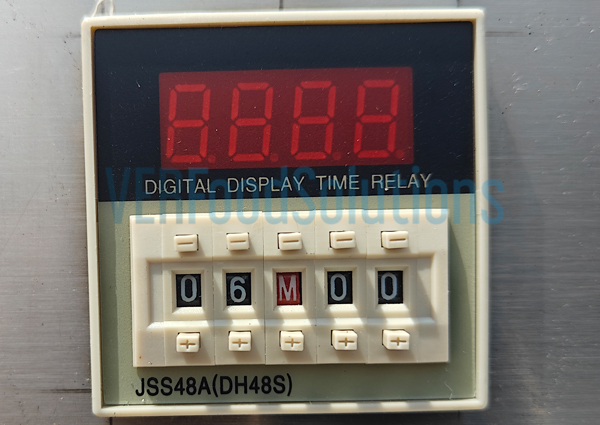

The timing is controlled via a time relay, which has five buttons on the top (labeled “-“) and five buttons on the bottom (labeled “+”). The relay’s display consists of five digit windows: the first two and last two display numbers from 0 to 9, which can be adjusted using the plus and minus buttons to set different values. The middle window can display “S”, “M”, or “H” in red, indicating seconds, minutes, or hours, respectively. These can also be adjusted with the plus and minus buttons.

For example, the current setting shown in the figure below is 6 minutes.

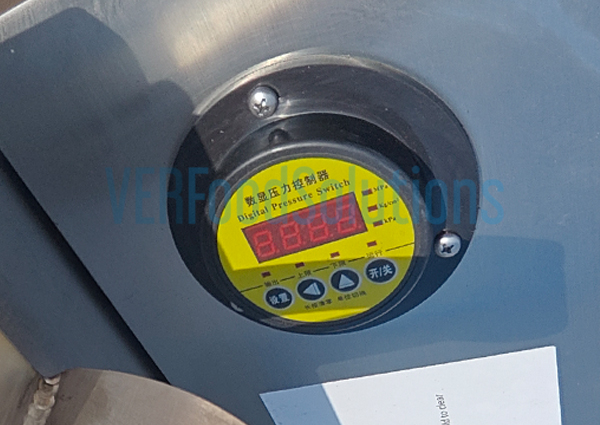

(3) Vacuum Extraction Device

How to operate the vacuum function on the vacuum twin shaft paddle mixer:

First, close all upper covers and silo doors. Set the operating time to 31 seconds and ensure the equipment is in automatic mode, with the choice of forward or reverse rotation.

Next, turn on the vacuum switch to initiate the vacuuming process. During this phase, neither the agitator nor the inverter will operate until the specified air pressure is reached. The lower pipeline pressure is set to 0.07; once this pressure is achieved, the vacuuming stops. The machine then begins stirring and starts the timing for 31 seconds.

Throughout this period, the inverter will remain steady, indicating the operating mode. When the set time completes, a “squeaking” sound will be heard—this indicates automatic exhaust. After the exhaust process is finished, the lid can be opened, and the exhaust pressure will begin to drop. Once the pressure gauge reads zero, the exhaust stops, and the lid can be safely opened.

Note: If the stop button is pressed during vacuuming, the lid cannot be opened immediately. You must hold the stop button until the pressure gauge shows zero pressure, after which the lid can be opened safely.

(4) Manual Operation Device

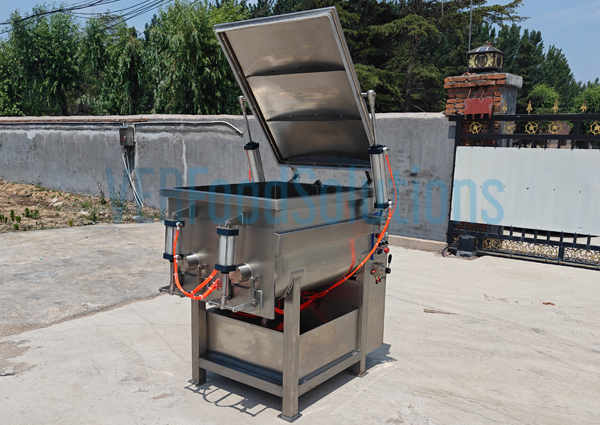

The vacuum twin shaft paddle mixer can also be operated manually. First, open the lid; during this time, the machine is not in vacuum mode. Both discharge ports remain closed. Next, turn the control knob to the “Manual” position to engage manual operation. Press the transfer button to start the stirring process. You can also reverse the direction of stirring as needed.

When operating manually, the time relay is disabled, and the machine will continue stirring until you manually stop it. Once the desired mixing state is reached, simply press the stop button to halt operation.

(5) Variable Frequency Speed Regulation

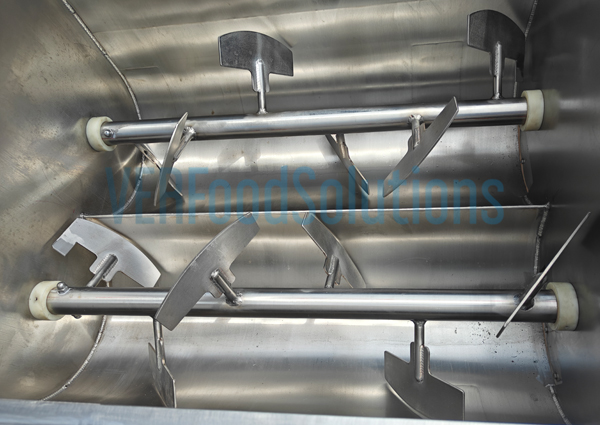

The vacuum twin shaft paddle mixer features variable frequency speed control, allowing precise adjustment of the stirrer’s speed. Turn the knob to the left to slow down the stirring speed, and turn it to the right to increase it, providing flexible control to suit different processing needs.

2. Optional Customizable Cover

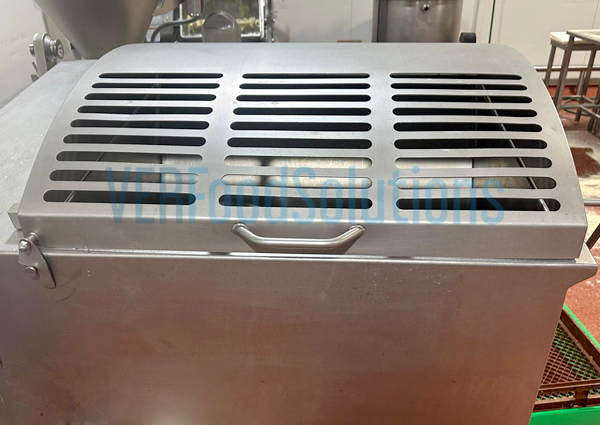

To ensure a proper vacuum seal, the standard lid of the vacuum twin shaft paddle mixer is typically made entirely of stainless steel. However, some customers prefer a different design, such as a grid or mesh lid. While this modification eliminates the vacuum function, it allows for easy observation through the gaps and enables feeding at any time. Although the vacuum pump is removed in this design, the pneumatic cover lifting device remains in use, ensuring convenient and safe cover operation.

3. Optional Cover Opening Stop The Solenoid Valve

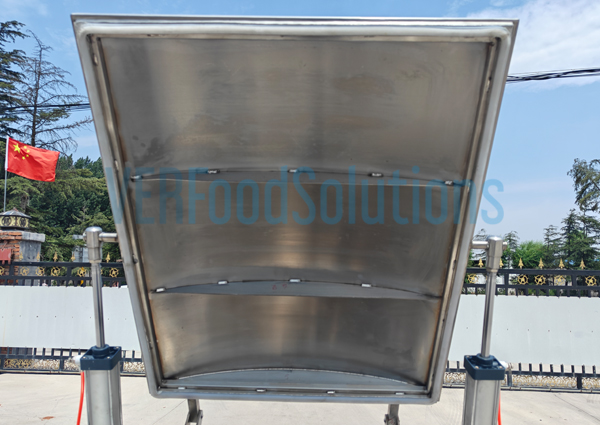

The vacuum twin shaft paddle mixer can be customized to meet specific customer requirements. Many clients opt for a cover-opening stop device to enhance safety. We install a solenoid valve on the cover, which automatically disconnects and stops the machine when the cover is opened. This feature significantly improves operational safety.

4. Multiple Models Available

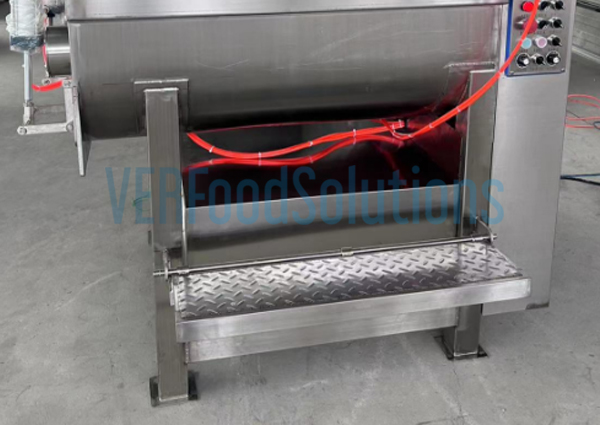

The vacuum twin shaft paddle mixer is available in various models, allowing seamless integration and adaptation to different processing lines. As the capacity increases, so does the output, with larger machines corresponding to higher volumes. To facilitate ease of operation and maintenance, we have designed user-friendly features for large-capacity models, including 550L, 750L, 1000L, 1200L, and 1500L– a pedal device is installed at the bottom of big capacity model to assist workers in monitoring operations and simplifying the cleaning process of the mixing tank.

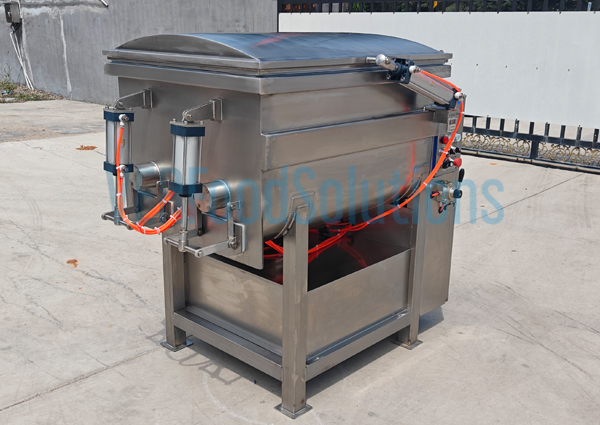

5. Cleaning and Maintenance

The vacuum twin shaft paddle mixer requires regular cleaning and maintenance after each use. The process is straightforward: connect a high-pressure water gun and rinse the interior of the machine directly. For stubborn residues such as butter or other difficult-to-clean products in the mixing tank, you can use a shovel to remove them. Additionally, wiping and cleaning with a rag is quick and effective, ensuring the machine remains hygienic and in optimal condition.

6. Integrated Production Line

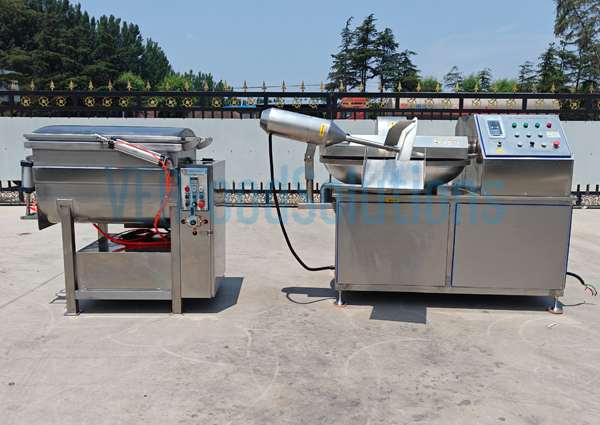

As a versatile meat processing machine, the vacuum twin shaft paddle mixer ensures thorough and even mixing of various fillings. It can effectively blend meat fillings and seasonings to produce a wide range of flavors. This machine is not only suitable for standalone operation but can also be integrated with a meat grinder and elevator to form a complete, efficient meat production line.

7. Testing and Delivery

Before delivery, we thoroughly debug and test the vacuum twin shaft paddle mixer. We then send test videos and pictures to the customer for inspection. Once the customer approves, we proceed with packing. The process includes cleaning and wiping the machine, wrapping it with protective film to secure accessories, and finally securing it within a wooden crate to prevent movement during transportation.

In summary, our vacuum twin shaft paddle mixer is a versatile, customizable, and reliable solution for various processing needs. With features such as ergonomic control panels, hydraulic lid lifting, precise time and speed controls, and optional safety and cleaning enhancements, it offers both efficiency and safety. Available in multiple models, it can be integrated into complete production lines for large-scale operations. We ensure rigorous testing and careful packaging to deliver a high-quality product that meets your specifications. We are committed to providing equipment that not only performs excellently but also ensures ease of operation, maintenance, and safety for our customers.

If you want to start the new projects for meat process, please feel free to contact us. We look forward to assisting you and providing the best solutions for your needs.
