Innovative Air Bubble Water Spraying Fruit Vegetable Washing Machine Boosts Processing Efficiency — Delivered to Guatemala

Efficiency is a key pursuit across all industries today, and the vegetable and fruit processing sector is no exception. The air bubble water spraying fruit vegetable washing machine has emerged as an innovative and highly popular solution in the market. Constructed from high-quality stainless steel and food-grade materials, it gently simulates manual cleaning, effectively avoiding damage to delicate produce while delivering powerful and efficient cleansing.

Beyond its cleaning capabilities, the machine significantly reduces manual labor, boosts agricultural product yield and quality, and helps control costs—benefits that have garnered great attention within the food processing industry.

For instance, our Guatemalan customer recently acquired an air bubble water spraying fruit vegetable washing machine to enhance operational efficiency. The machine has now been produced and shipped, and the customer is using it to wash a variety of products, including mangoes, bananas, nectarines, spinach, celery, cucumbers, and more. The specified output requirement was 800 kg per hour, and we designed the machine with dimensions of 5000 x 800 mm to meet this demand.

In the following, we will explore in depth the application advantages of the bubble water spray washing machine and how it can benefit your processing operations.

1. Control Panel

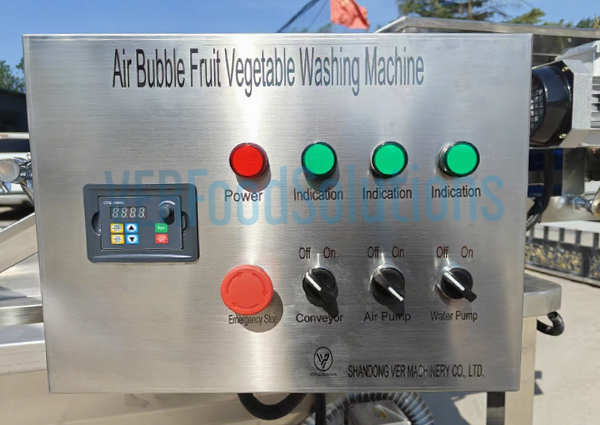

The air bubble water spraying fruit vegetable washing machine features a user-friendly control panel. Each button is clearly labeled and easy to operate, including functions such as the power switch, conveyor, water pump, and air pump. Even users with no prior experience can quickly learn to operate the machine with confidence. Additionally, we offer customization of the control panel in different languages to meet customer needs.

To facilitate maintenance and troubleshooting, the control panel is designed with a snap-on configuration, allowing for easy access and quick switching of electrical components and wiring during subsequent inspections or repairs.

2. Spray Rods and Spray Nozzles

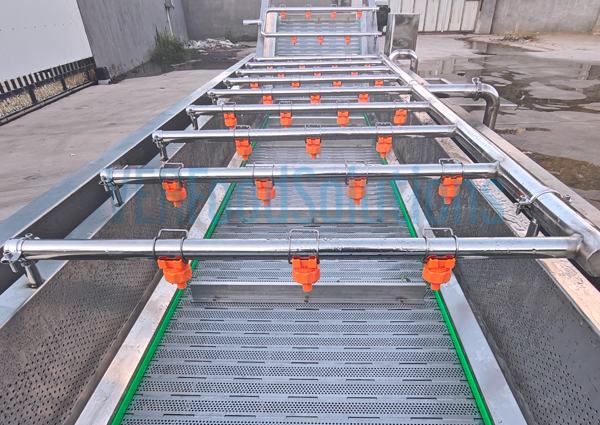

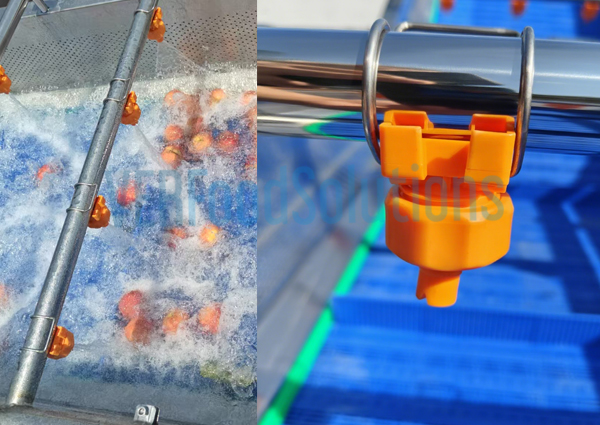

For the customer’s 5-meter-long air bubble water spraying fruit vegetable washing machine, we installed 11 spray rods. Each spray rod is equipped with three or four nozzles arranged alternately to ensure comprehensive coverage and effective cleaning of the products.

The spray nozzles are manually adjustable, allowing users to alter the spray angle as needed to achieve different cleaning effects and optimize performance.

3. Optional Conveyor Belt

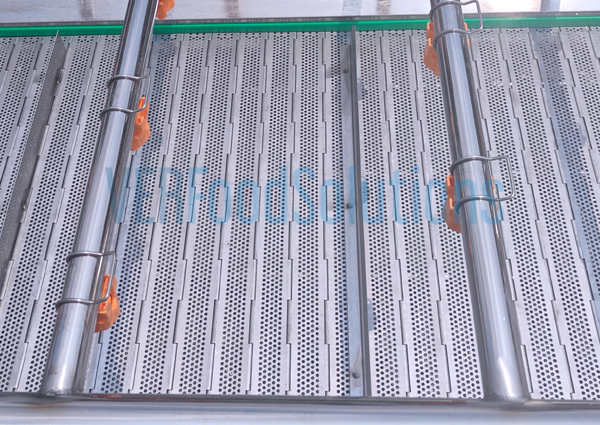

The air bubble water spraying fruit vegetable washing machine features a chain belt made of 304 stainless steel, known for its durability and corrosion resistance. The belt is perforated with small holes of 3mm in diameter, making it ideal for washing various products.

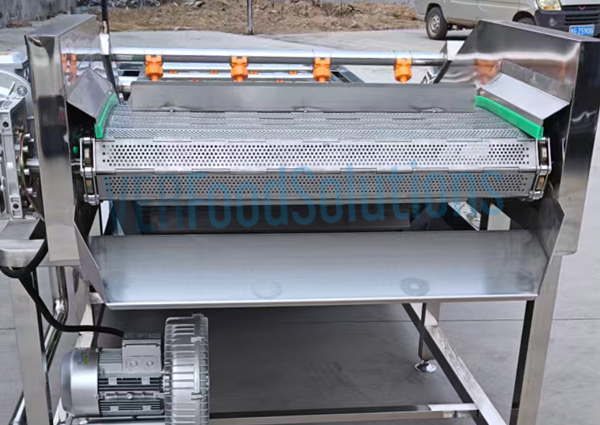

Additionally, we install baffles on the belt to facilitate the movement of materials forward and out of the machine. These baffles are available in various sizes to accommodate products of different dimensions.

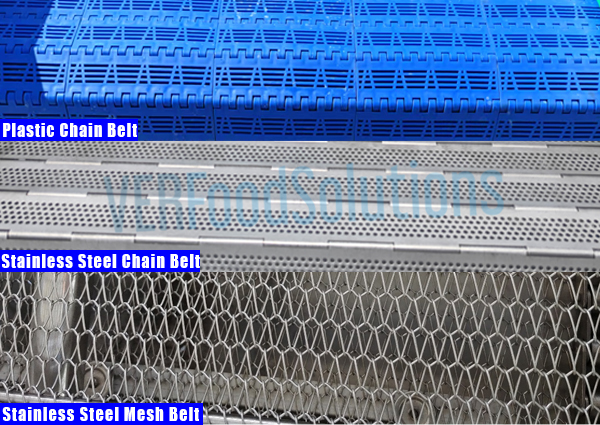

Additionally, we offer alternative belt options tailored to different product needs:

– Plastic chain belt: Suitable for delicate-skinned items such as grapes and tomatoes.

– Stainless steel chain belt: Ideal for leafy vegetables and fruits like spinach, jujubes, and oranges.

– Stainless steel mesh belt: Designed for larger produce such as pumpkins and winter melons.

These options ensure gentle handling and effective cleaning for a wide range of products.

4. Discharge Port

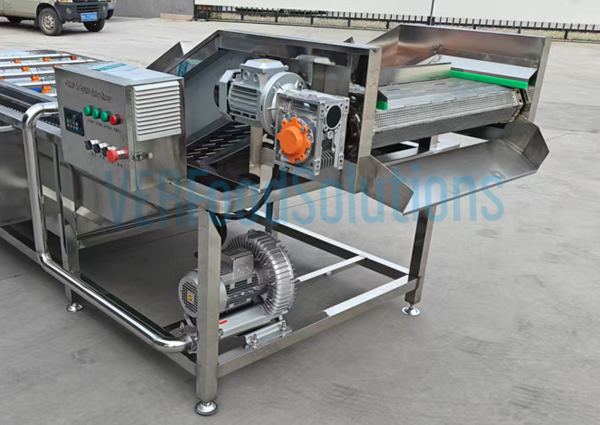

The air bubble water spraying fruit vegetable washing machine is equipped with a lifting discharge port, allowing for efficient removal of washed products while retaining water within the machine. This design replaces manual labor, making the discharging process quick and convenient. Additionally, the discharge port can be connected seamlessly to other equipment, enabling continuous production and streamlined operation.

5. Drainage Outlet

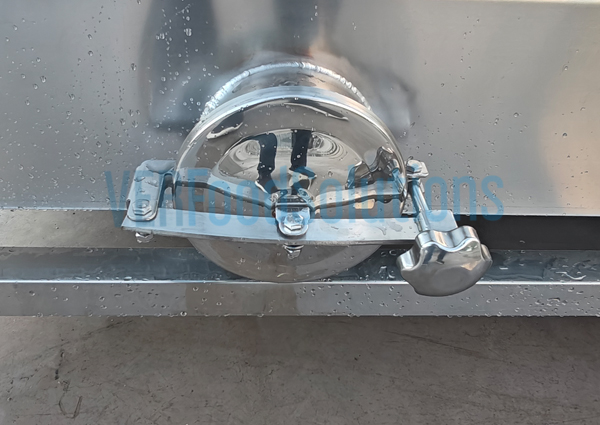

The air bubble water spraying fruit vegetable washing machine features a large-diameter drainage outlet for efficient water removal. Previously, a silicone drainage outlet was used, but it has now been fully upgraded to a durable stainless steel outlet with a locking mechanism and an optimized design for improved performance and longevity.

6. Filter Tank

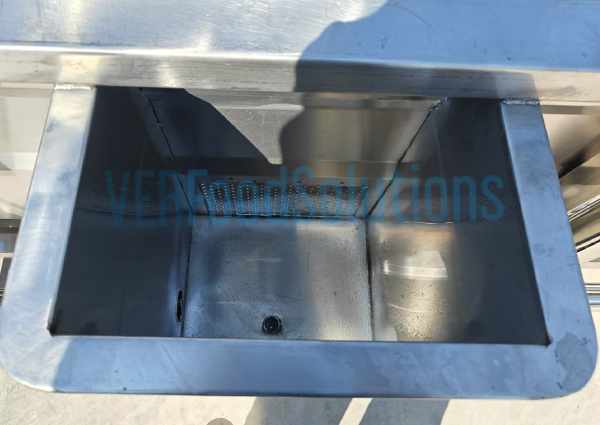

The air bubble water spraying fruit vegetable washing machine is equipped with a side-mounted filter tank. Once the machine is in operation, water circulates continuously through the tank. The tank features small holes on its side, allowing it to effectively filter out impurities and maintain water cleanliness. This design enables the water to be reused multiple times, helping to reduce costs and save time.

7. Customized Voltage

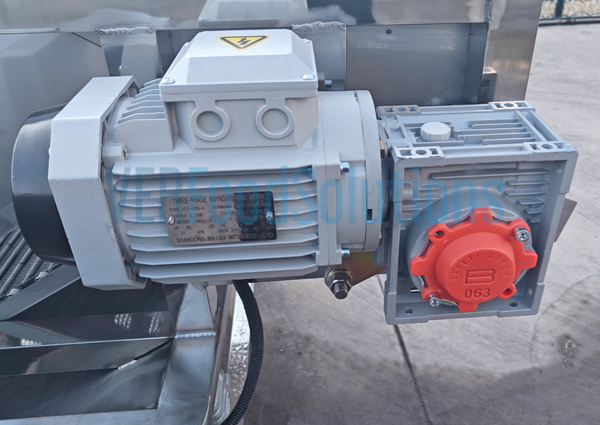

The standard voltage for the air bubble water spraying fruit vegetable washing machine is 380V, 50Hz, three-phase. However, since our customer in South America operates on 220V, 60Hz, three-phase industrial power, we specially customized the motor to match their voltage requirements. No matter what voltage your area uses, we can tailor the machine accordingly to ensure smooth and reliable operation in your local environment.

8. Accessories

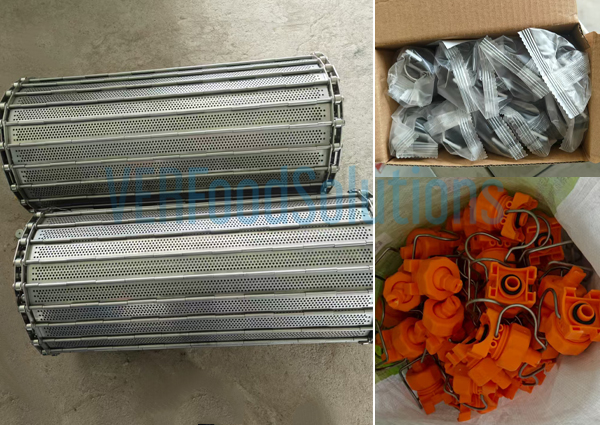

The air bubble water spraying fruit vegetable washing machine is highly durable, with minimal vulnerable parts. To accommodate the customer’s international use, we included 10 switches and 5 water nozzles as complimentary accessories. Additionally, the customer voluntarily purchased an extra 45 water nozzles and 10 meters of SUS 304 chain belt to meet their specific needs.

9. Stainless Steel Material

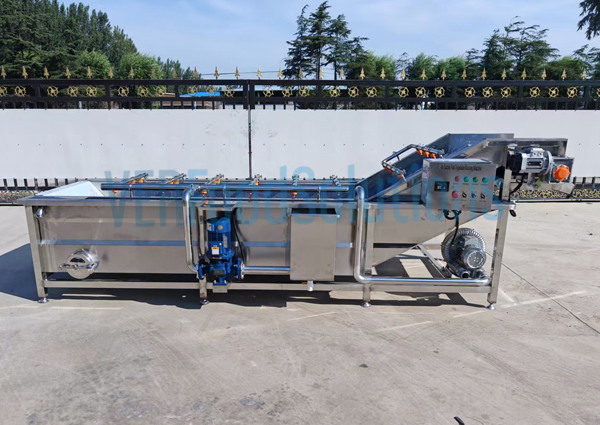

The entire air bubble water spraying fruit vegetable washing machine is constructed from food-grade 304 stainless steel. This material is essential, as the machine is in prolonged contact with water, and stainless steel effectively prevents rust and corrosion. Our commitment to using food-grade materials ensures that your products are processed with the highest standards of cleanliness and safety.

10. Testing Before Delivery

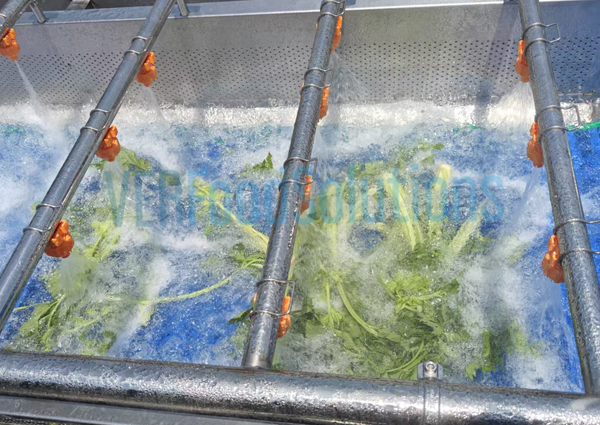

Before shipment, we thoroughly debug and test the air bubble water sparying fruit vegetable washing machine. We send detailed test videos and photos to the customer for inspection. Once the customer approves, we proceed with packing. The process includes cleaning and wiping the machine, applying protective film to prevent scratches during transportation, and securing it within a wooden crate to ensure stability and safety during transit.

In summary, our air bubble water spraying fruit vegetable washing machine offers a comprehensive, efficient, and hygienic solution tailored to meet the diverse needs of modern food processing operations. From user-friendly controls and customizable features to durable materials and rigorous pre-shipment testing, each aspect is designed to ensure optimal performance, safety, and ease of maintenance. By integrating this innovative equipment into your processing line, you can significantly enhance product quality, reduce labor costs, and achieve higher operational efficiency. We are committed to providing reliable, high-quality machinery and excellent customer support to help your business thrive in a competitive industry. If you are interested in starting this project, please contact us for a quotation.
