High Capacity Air Bubble Water Spraying Fruit Vegetable Washing Machine for Belarus

Recently, we completed and delivered a custom-made 6-meter-long air bubble water spraying fruit vegetable washing machine designed for washing fruits and vegetables. This specialized equipment was commissioned by a Belarusian customer for a local end-user, focusing on large-scale, high-volume cucumber washing. The machine features an innovative air bubble system that enhances cleaning efficiency and ensures thorough removal of dirt and pesticides. Its length allows for continuous processing, making it ideal for applications. We are proud to support our clients with tailored solutions that improve productivity and ensure quality. Let’s take a closer look at this state-of-the-art washing machine and see how it meets the demands of modern processing!

1. 304 Stainless Steel Material

The entire air bubble water spraying fruit vegetable washing machine is made of food-grade 304 stainless steel. Material is crucial because the machine will be in contact with water for extended periods, and stainless steel effectively prevents rust and corrosion. We insist on using food-grade materials to ensure your products meet the highest standards of cleanliness and safety during the washing process.

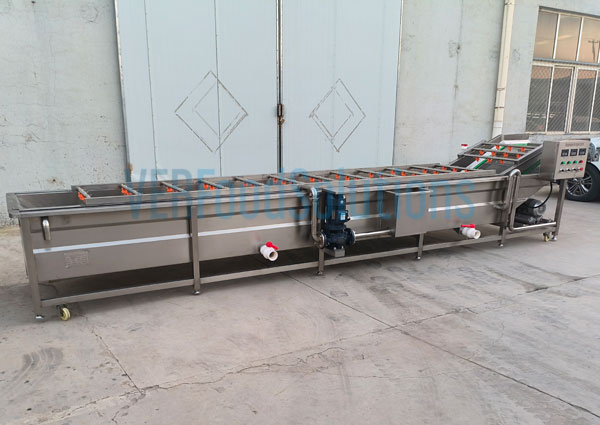

2. Custom Sizes Available

One of the major advantages of our air bubble water spraying fruit vegetable washing machine is its customizable design, allowing for adjustments to length and configuration to suit different production needs and factory sizes. Whether for small-scale operations or large-scale processing, our machines can be tailored accordingly. For example, our Belarusian customer chose a 6-meter-long air bubble water spraying fruit and vegetable washing machine to wash cucumbers, requiring a washing capacity of 2000 kg per hour. The 6-meter length perfectly matches their specific processing volume and space requirements. This flexibility ensures that every customer receives a solution optimized for efficiency and productivity.

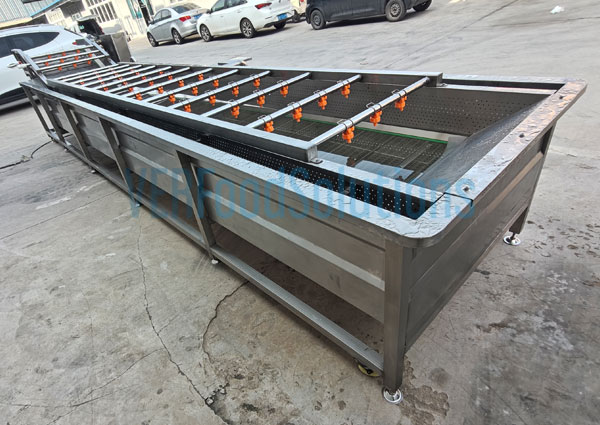

3. Dual-slot Design

Our air bubble water spraying fruit vegetable washing machine features a dual-tank design with filter baffles on both sides. This effectively captures and separates impurities during the washing process, providing superior cleaning power. This washing machine is especially suitable for freshly picked root vegetables from sandy soil or those with a lot of dirt or impurities, such as radishes, sweet potatoes, carrots and beets. It also excels at cleaning fruits and vegetables with a rough texture or deep crevices, such as pineapples, melons and strawberries, as well as head vegetables that easily accumulate dirt, such as broccoli and cauliflower. This dual-tank design maximizes cleaning efficiency, ensuring that even the dirtiest produce is spotless and meets market standards.

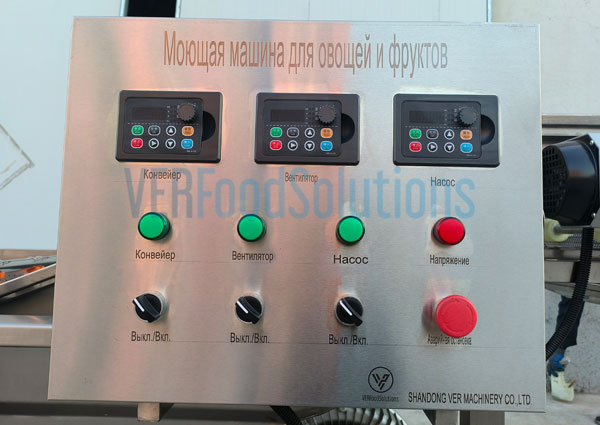

4. User-friendly Control Panel

This air bubble water spraying fruit vegetable washing machine features a user-friendly control panel. Each button is clearly labeled and easy to operate, including functions such as the power switch, conveyor belt, water pump, and air pump. Even users with no experience can quickly learn and operate it easily. This Belarusian customer specifically requested a custom-designed control panel with three inverter adjustment screens to regulate the conveyor belt speed, bubble speed, and water pump speed. Furthermore, we offer a language customization service for the control panel, creating a Russian version for this Belarusian customer to meet their needs. In addition, for ease of maintenance and troubleshooting, the control panel uses a snap-on design for easy access and quick replacement of electrical components and wiring during subsequent inspections or repairs.

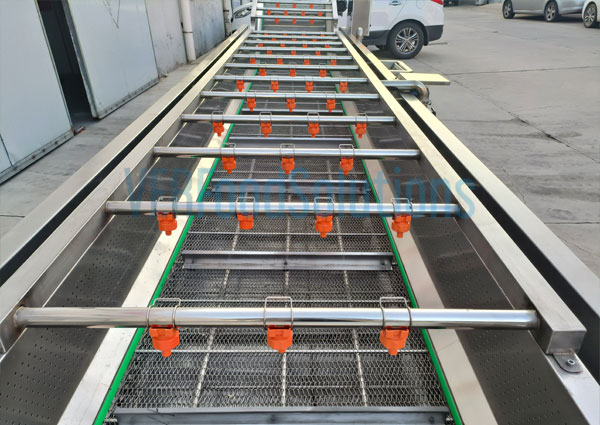

5. Spray Bar and Adjustable Nozzle

We installed 15 spray bars on a 6-meter-long air bubble water spraying fruit vegetable washing machine for our client. Each spray bar is equipped with three to four staggered nozzles. Because our Belarusian client required more than 50 nozzles, we specially customized the number of nozzles in the rinsing zone to 42 and the number in the wash area to 10, free of charge. This met our client’s needs, better suited the 6-meter length, and ensured comprehensive coverage and effective cleaning of the product. The nozzles are manually adjustable, allowing users to change the nozzle angle as needed to achieve different cleaning effects.

Furthermore, we offer nozzles in two materials: plastic and stainless steel. Choosing plastic nozzles allows for adjustable spray angles, providing greater flexibility and coverage. In contrast, stainless steel nozzles offer a fixed spray angle, durability, and stable performance. You can choose the appropriate nozzle type based on your needs and preferences. Our Belarusian client chose plastic nozzles, whose diverse spray patterns optimize cleaning efficiency.

6. Sprinkler System

The air bubble water spraying fruit vegetable washing machine is equipped with a spray system in the rinsing area. The water used during rinsing is recycled back to the washing area and integrated into the water circulation system, which helps to save water resources and improve efficiency.

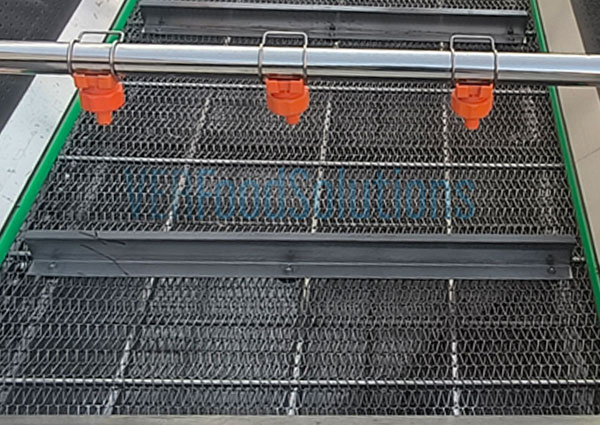

7. Optional Conveyor Belt

This air bubble water spraying fruit vegetable washing machine uses a 304 stainless steel conveyor belt, a material renowned for its durability and corrosion resistance. The Belarusian customer, needing to wash cucumbers, chose a stainless steel mesh belt with large mesh openings for effective water spraying, ideal for washing larger vegetables and fruits like cucumbers. The conveyor belt speed is adjustable from 0.025m/s to 0.04m/s, accommodating fruits and vegetables with varying levels of dirt. Furthermore, baffles are installed on the conveyor belt to facilitate material movement and discharge. These baffles are available in various sizes to accommodate different product dimensions. We also offer alternative belt options for different product needs: plastic chain belts are suitable for delicate items like grapes and tomatoes; stainless steel chain belts are ideal for leafy vegetables and fruits such as spinach, dates, and oranges; and stainless steel mesh belts are designed for larger produce like pumpkins and winter melons.

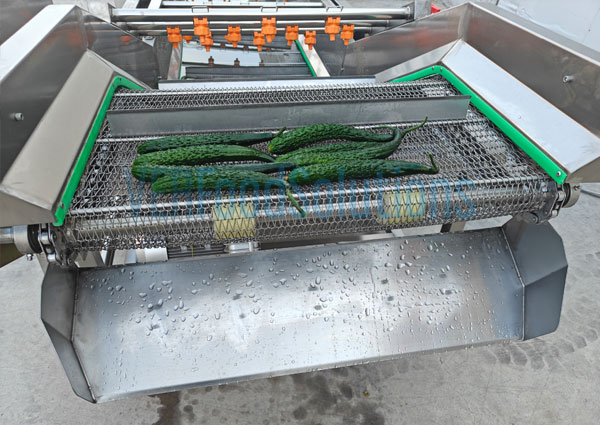

8. Discharge Port

This air bubble water spraying fruit vegetable washing machine features a lift-up discharge port, which efficiently discharges washed fruits and vegetables while maintaining moisture inside the machine. This design eliminates the need for manual operation, making the discharge process quick and convenient. Furthermore, the discharge port can be seamlessly connected to other equipment for continuous production and efficient operation.

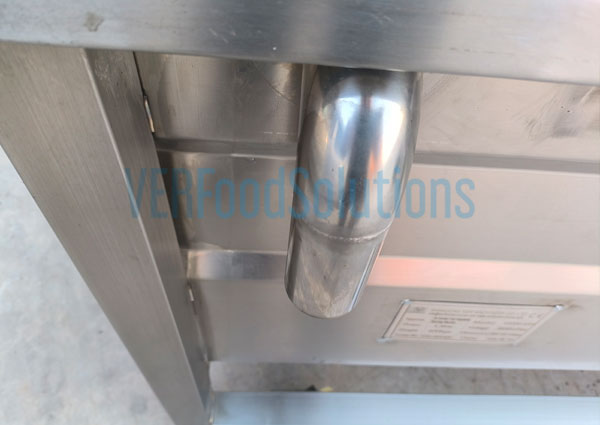

9. Highest Water Level and Overflow System

Our air bubble water spraying fruit vegetable washing machine is equipped with an overflow system, a maximum water level line, and an extended overflow hose. We also specially customized the distance from the bottom of the tank to the overflow hole to 43 cm meters for this Russian customer. When the water level exceeds this level, excess water will automatically drain to ensure optimal operation.

10. Water Filter Tank

This air bubble water spraying fruit vegetable washing machine features a side-mounted filter tank. Water continuously circulates within the tank while the machine is running. Small perforations on the side of the tank effectively filter impurities, keeping the water clean. This design allows for multiple water reuses, reducing costs and saving time.

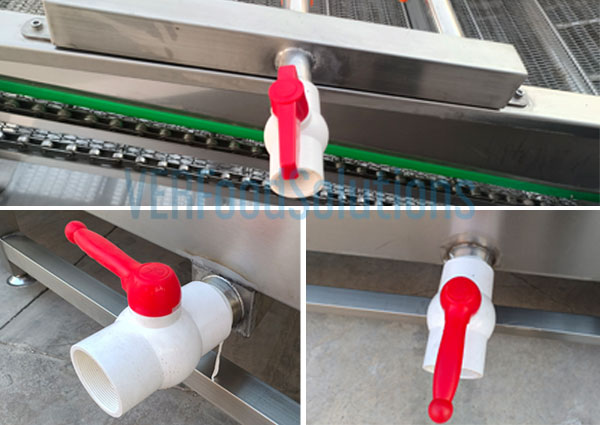

11. Water Inlet and Dual Drainage System

We equipped this 6-meter air bubble water spraying fruit vegetable washing machine with two drain outlets. Based on the customer’s requirements, the drain outlet under the filter tank was changed to a submerged drain outlet. This helps to drain water from inside the machine below the main drain outlet, preventing water accumulation, ensuring thorough drainage, guaranteeing smooth machine operation, and improving drainage efficiency. Each drain outlet also has an openable and closeable valve for easy control of drainage. Furthermore, our customer added shut-off valves to the water inlets of the rinsing and washing zones for direct control of water intake.

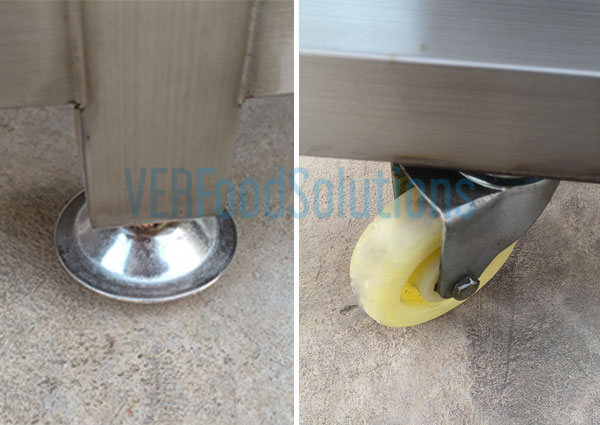

12. Switchable Wheels and Feet

Our air bubble water spraying fruit vegetable washing machine is equipped with both movable casters and sturdy feet. The feet are height adjustable, allowing the wheels to touch the ground when the feet are raised, thus satisfying the need for easy machine movement and stable placement on flat ground.

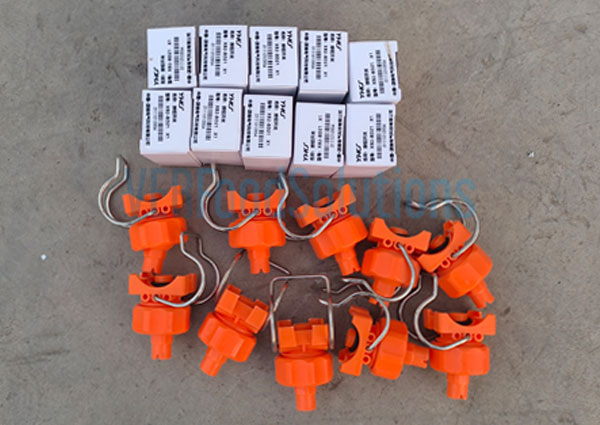

13. Ample Accessories

This air bubble water spraying fruit vegetable washing machine is durable with very few easily damaged parts. To meet customer needs and prepare for unforeseen circumstances, we are providing 10 switches and 10 nozzles free of charge for replacement.

14. Customized Voltage

This air bubble water spraying fruit vegetable washing machine is designed for 380V, 50Hz, three-phase operation, perfectly matching the 380V, 50Hz, three-phase industrial power supply used by our Belarusian customers. Furthermore, we can customize the motor to match your local voltage requirements. Regardless of the voltage used in your region, we can adjust the machine to your specific needs to ensure stable and reliable operation in your local environment.

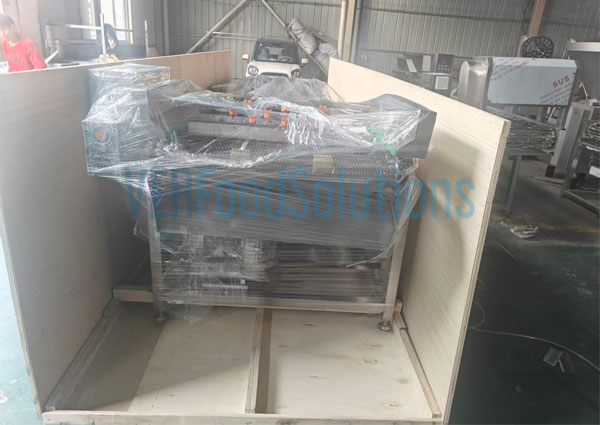

15.Pre-shipment Testing, Packaging, and After-sales Service

Each air bubble water spraying fruit vegetable washing machine undergoes rigorous testing before leaving the factory to ensure optimal performance. We also provide test videos so you can verify the quality of the equipment before receiving it. To protect the machine from scratches during transportation, we use thick protective film to prevent abrasions, then pack it in a sturdy wooden crate reinforced with a steel frame to withstand impacts. Full logistics tracking allows you to monitor the shipment status in real time. After receiving the goods, you will enjoy a 12-month warranty for peace of mind. Our professional after-sales team is available 24/7 to answer any questions and provide technical support, ensuring your equipment operates smoothly and your long-term satisfaction.

In summary, our 6-meter-long air bubble water spraying fruit vegetable washing machine is designed for washing large quantities of fruits and vegetables, with a washing capacity of up to 2000 kg per hour, making it ideal for busy vegetable processing plants and restaurants. Constructed from high-quality stainless steel, the machine offers customization options, a multilingual control panel, and adaptability to different regional power standards to meet your specific needs. We are committed to providing excellent support, from pre-shipment testing to after-sales service, ensuring your success throughout the entire process. Contact us today to learn more or discuss your specific needs—we’re dedicated to helping you upgrade your vegetable processing!
